| Varenummer | TX23D86VM0BAA |
| Mærke | KOE |
| Størrelse | 9.0 |
| Ansøgning | IA |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HITACHI |

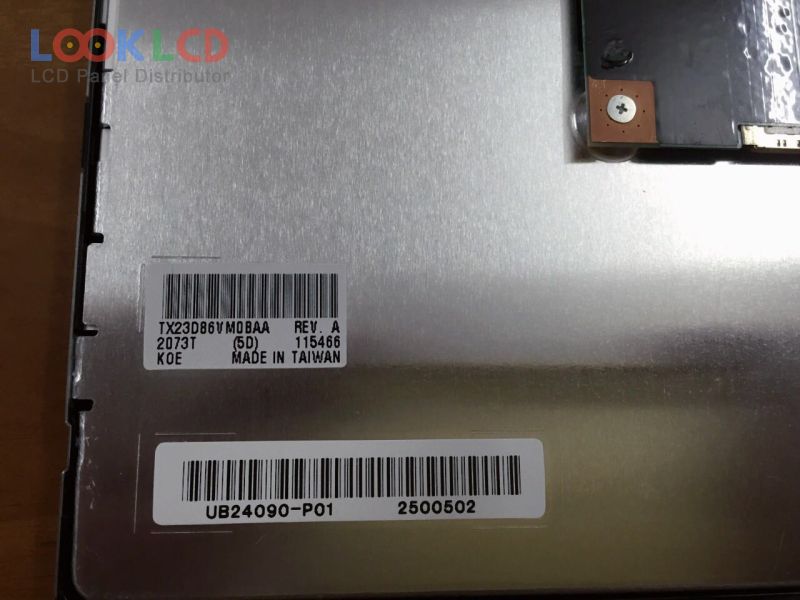

| panel model | TX23D86VM0BAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.0 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | IPS NP, Normally Black, Transmissive |
| aktivt område | 193.92×116.352 mm |
| omrids | 216×142 mm |
| overflade | |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193172% |
| responstid | 22 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
