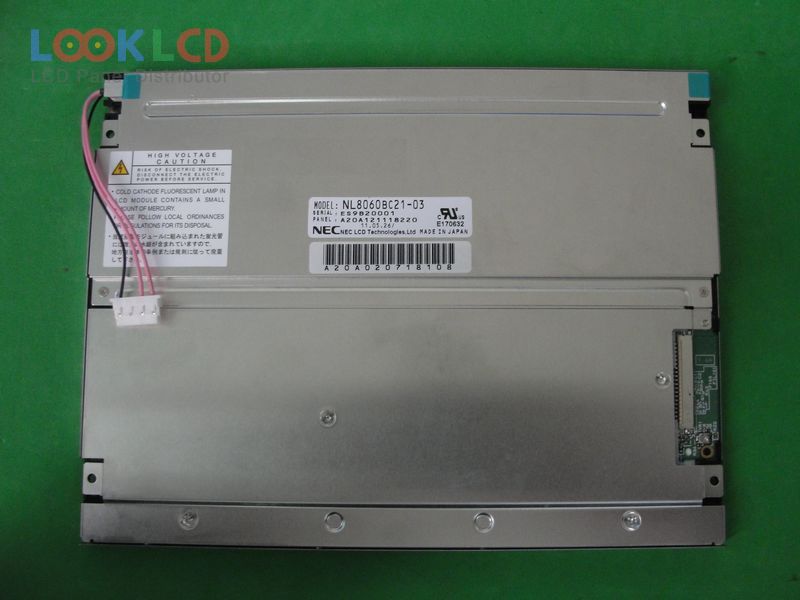

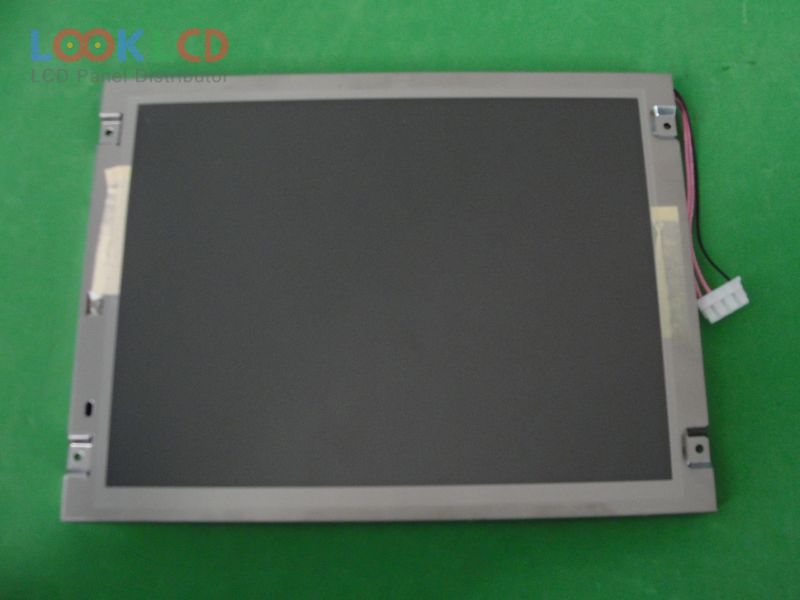

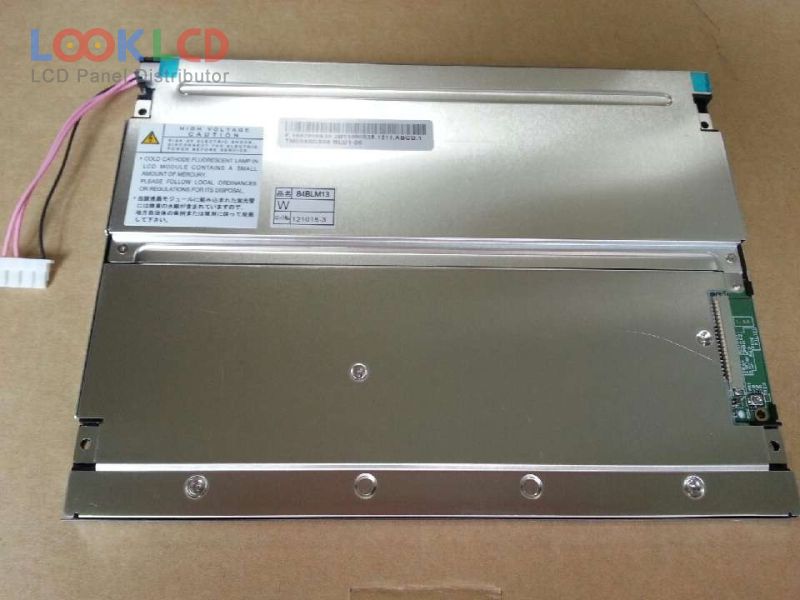

| Varenummer | NL8060BC21-03 |
| Mærke | NLT |
| Størrelse | 8.4 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 650 |
| CR | 600:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL8060BC21-03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 170.4×127.8 mm |
| omrids | 200×152×11 mm |
| overflade | Clear, Hard coating (2H), Antireflection |
| lysstyrke | 650 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| responstid | 6/19 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| NL8060AC26-04 | NLT | 10.4 | 800×600 |
| NL8060AC26-05 | NLT | 10.4 | 800×600 |
| NL8060BC21-11 | NLT | 8.4 | 800×600 |
| NL8060BC21-11F | NLT | 8.4 | 800×600 |
| NL8060BC26-15 | NLT | 10.4 | 800×600 |
| NL8060BC26-17 | NLT | 10.4 | 800×600 |
| NL8060BC26-30C | NLT | 10.4 | 800×600 |
| NL8060BC26-30D | NLT | 10.4 | 800×600 |
| NL8060BC31-02 | NLT | 12.1 | 800×600 |
| NL8060BC31-41D | NLT | 12.1 | 800×600 |
| EL640.400-C3 FRA | Lumineq | 9.1 | 640×400 |
| LM085YB1T01 | SHARP | 8.5 | 800×480 |
| LQ104S1LG32 | SHARP | 10.4 | 800×600 |
| PD064VT5 | E Ink | 6.4 | 640×480 |
| PD080SL5 | E Ink | 8.0 | 800×600 |
| RGS24128064WW001 | RiTdisplay | 2.4 | 128×64 |
| TM240128ABCWVBYD | Tianma | 4.8 | 240×128 |
| TX23D85VM0BAA | KOE | 9.0 | 1280×768 |
| UG-2864KLBLG01 | WiseChip | 1.3 | 128×64 |
| UG-5664ASYEF01 | WiseChip | 3.1 | 256×64 |
