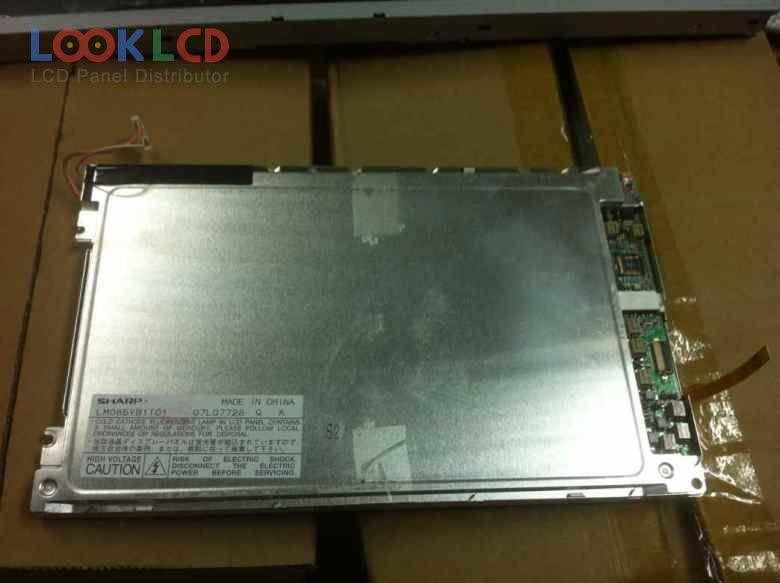

| Varenummer | LM085YB1T01 |
| Mærke | SHARP |
| Størrelse | 8.5 |
| Ansøgning | IA |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | |
| Farver | Monochrome |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | SHARP |
| panel model | LM085YB1T01 |
| paneltype | FSTN-LCD , LCM |
| panelstørrelse | 8.5 inch |
| løsning | 800×480 , WVGA |
| visningstilstand | STN, Black/White mode, Transmissive |
| omrids | 222.7×134 mm |
| overflade | |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | Monochrome |
| responstid | |
| synsvinkel | |
| lampe type | 1 pcsCCFL |
| signal interface | Parallel Data (8-bit) |
| rohs: | |
| Ansøgning | IA |
