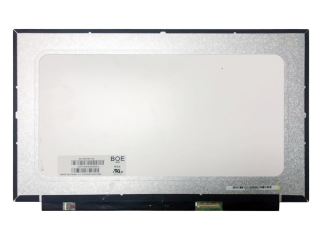

| Varenummer | NV156FHM-T06 |
| Mærke | BOE |
| Størrelse | 15.6 |
| Ansøgning | Laptop |
| Løsning | 1920×1080 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | 10S4P |
| Interface | eDP |
| fabrikant | BOE |
| skærmstørrelse | 15.6 inch |
| pixel antal | 1920(RGB)×1080 (FHD) 141PPI |
| aktivt område (mm) | 344.16 × 193.59 (H×V) |
| rammeareal (mm) | - |
| luminans | 250 cd/m² (Typ.) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| god udsigt kl | Symmetry |
| farvedybde | 262K 45% NTSC |
| konturform | Slim (PCBA Flat, T≤3.2mm) |
| opdateringshastighed | 60Hz |
| signaltype | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnavn | NV156FHM-T06 (BOE083D) |
| skærmtype | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| omrids (mm) | 350.66 × 216.15 × 3.4 (H×V×D) |
| behandling | Hard coating (3H) |
| kontrastforhold | 800 : 1 (Typ.) (TM) |
| respons | 16 (Typ.)(Tr+Td) ms |
| arbejdstilstand | ADS, Normally Black, Transmissive |
| baggrundsbelysning | 10S4P WLED , 15K hours , With LED Driver |
| anvendes til | Laptop |
| berøringsskærm | On-Cell Touch |
