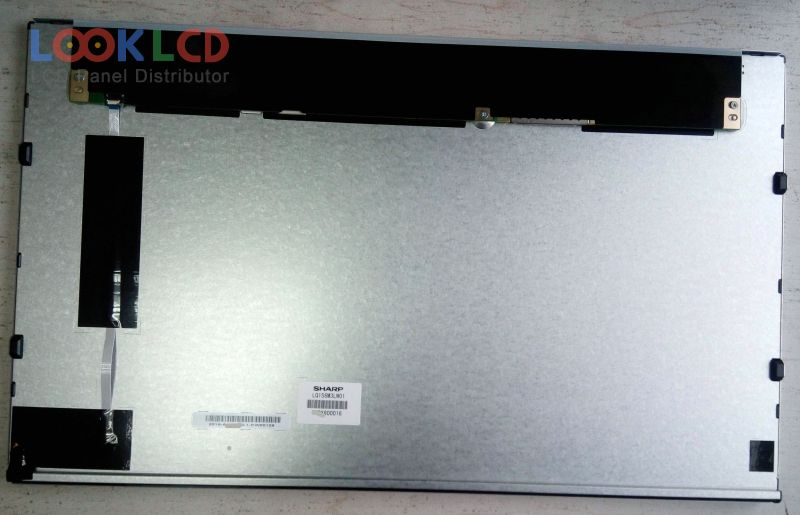

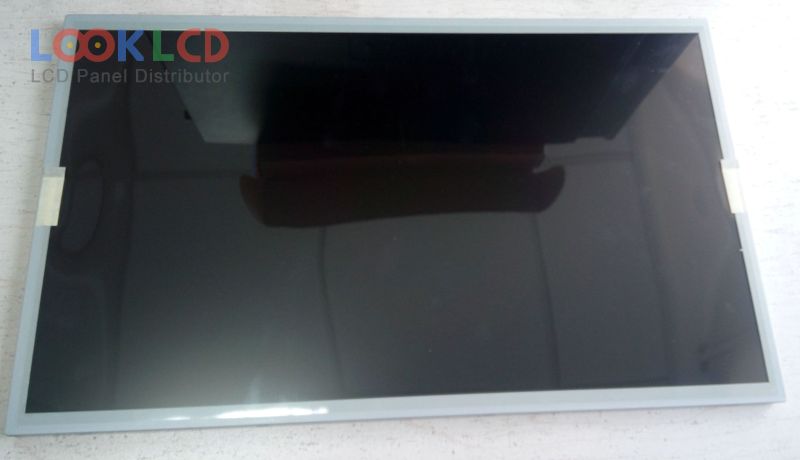

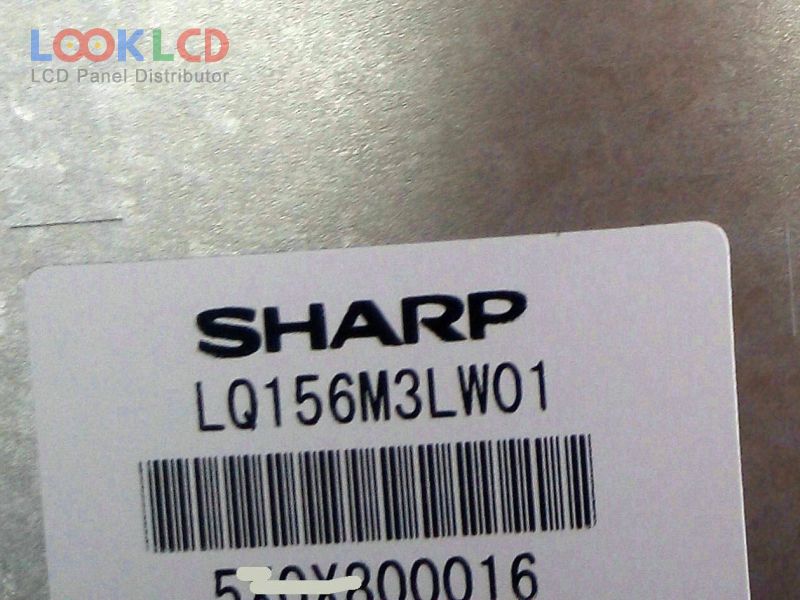

| Varenummer | LQ156M3LW01 |
| Mærke | SHARP |
| Størrelse | 15.6 |
| Ansøgning | IA |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 1500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ156M3LW01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 344.16×193.59 mm |
| omrids | 363.8×215.9 mm |
| overflade | Antiglare, Hard coating |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 1500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193176% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | IA |
