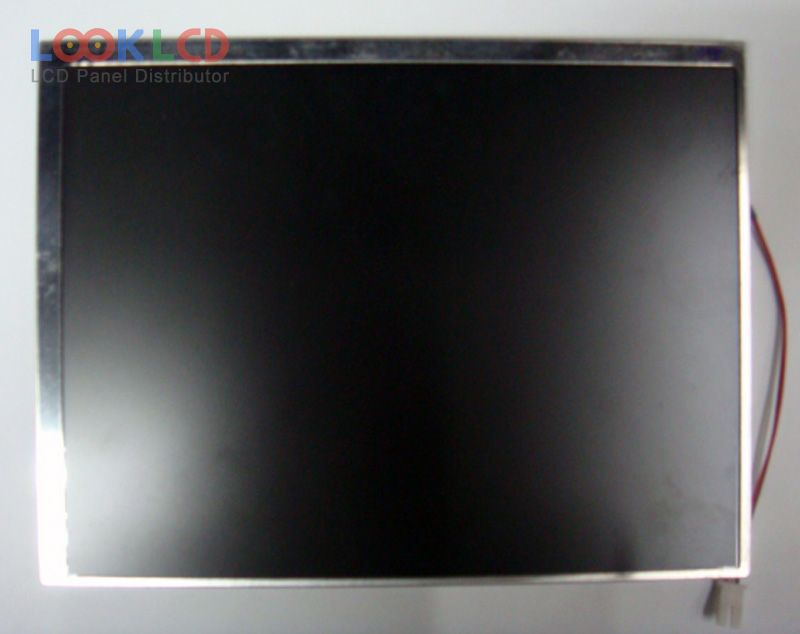

| Varenummer | PD080SY1 |
| Mærke | E Ink |
| Størrelse | 8.0 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | PVI |
| panel model | PD080SY1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 162×121.5 mm |
| omrids | 174.4×133.1×6.74 mm |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/25 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S10PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3/3.3/9.6/18/-6V (Typ.)(VCC1/VCC2/AVDD/VDDG/VEEG) |
| Ansøgning | IA |
| A080SN01 V0 | AUO | 8.0 | 800×600 |
| A080SN02 V0 | AUO | 8.0 | 800×600 |
| AT080TN42 | Innolux | 8.0 | 800×600 |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| PD080SL1 | E Ink | 8.0 | 800×600 |
| PD080SL2 | E Ink | 8.0 | 800×600 |
| PD080SL3 | E Ink | 8.0 | 800×600 |
| PD080SL5 | E Ink | 8.0 | 800×600 |
| PD080SY1 | E Ink | 8.0 | 800×600 |
| AA104XD12--G1 | Mitsubishi | 10.4 | 1024×768 |
| AM-1024600L3TMQW-T05H | AMPIRE | 10.1 | 1024×600 |
| DLH1055 | LiteMax | 10.4 | 1024×768 |
| EL160.80.50 LC CC | Lumineq | 3.5 | 160×80 |
| EL320.240.36 ET | Lumineq | 5.7 | 320×240 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| LM065HB1T01 | SHARP | 6.5 | 640×240 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TX23D86VM0BAA | KOE | 9.0 | 1280×768 |
| UG-5664ASGGF01 | WiseChip | 5.5 | 256×64 |
