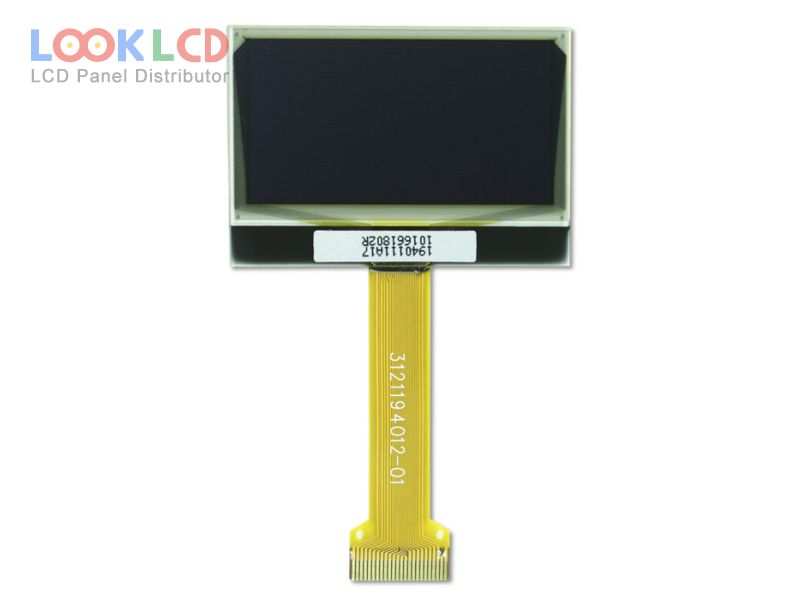

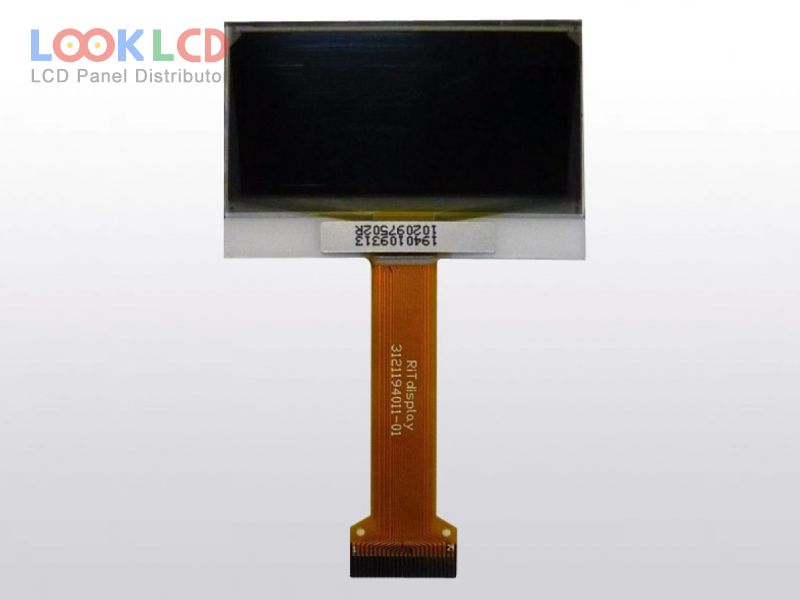

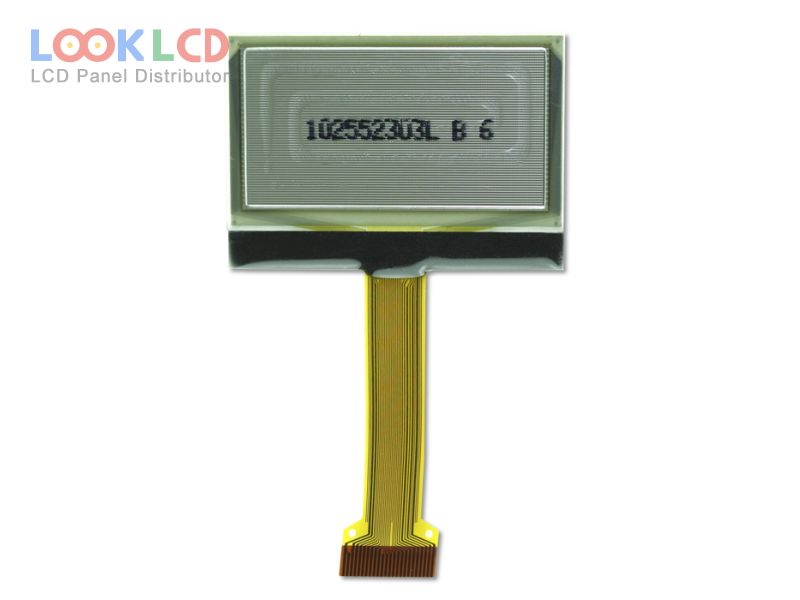

| Varenummer | RGS16128064YR000 |
| Mærke | RiTdisplay |
| Størrelse | 1.6 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | 80 |
| CR | 2000:1 |
| Farver | Mono(Yellow) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI |
| panel mærke | RiTdisplay |
| panel model | RGS16128064YR000 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 1.6 inch |
| løsning | 128×64 |
| aktivt område | 36.45×18.21 mm |
| omrids | 41.9×28×1.71 mm |
| overflade | Antiglare |
| lysstyrke | 80 cd/m² (Typ.) |
| kontrastforhold | 2000 : 1 (Min.) |
| vise farver | Mono(Yellow) (1-bit) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 105Hz |
| driver ic | COG Built-in SSD1325 |
| signal interface | 8-bit 6800/8080 parallel, SPI, 24 pins |
| indgangsspænding | 14/2.7V (Typ.)(VCC/VDD) |
| Ansøgning | IA |
