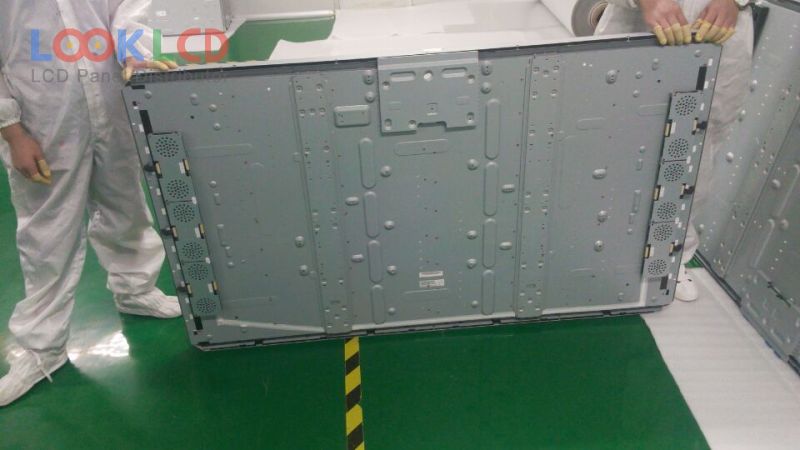

| Varenummer | RX650-Z20 |
| Mærke | ROGIN |
| Størrelse | 65 |
| Ansøgning | PID |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 2000 |
| CR | 4000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | ROGIN |
| panel model | RX650-Z20 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 65 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | AMVA3, Normally Black, Transmissive |
| aktivt område | 1428.48×803.52 mm |
| omrids | 1508×878 mm |
| overflade | Antiglare (Haze 2%), Hard coating (3H) |
| lysstyrke | 2000 cd/m² (Typ.) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 1.07B (8-bit + Hi-FRC), CIE193172% |
| responstid | 5.5 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (4 ch, 10-bit), 92 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | PID |
| P645HW03 V0 | AUO | 65 | 1920×1080 |
| P650HVN01.0 | AUO | 65 | 1920×1080 |
| RX650-Z20 | ROGIN | 65 | 1920×1080 |
| T645HB01 V0 | AUO | 65 | 1920×1080 |
| T650HVN04.1 | AUO | 65 | 1920×1080 |
| T650HVN05.9 | AUO | 65 | 1920×1080 |
| T650HVN07.0 | AUO | 65 | 1920×1080 |
| T650HVN07.3 | AUO | 65 | 1920×1080 |
| T650QVF05.0 | AUO | 65 | 3840×2160 |
| V650DK1-QS1 | Innolux | 65 | 3840×2160 |
| LD420EUP-SEB1 | LG Display | 42 | 1920×1080 |
| LD420WUB-SBA1 | LG Display | 42 | 1920×1080 |
| LD550EUE-FHB1 | LG Display | 55 | 1920×1080 |
| LD840EQD-SEM1 | LG Display | 84 | 3840×2160 |
| LTI460HM01 | Samsung | 46 | 1920×1080 |
| LTI550HN04 | Samsung | 55 | 1920×1080 |
| LTI700HD03 | Samsung | 70 | 1920×1080 |
| LTI820HD03 | Samsung | 82 | 1920×1080 |
| P645HW01 V0 | AUO | 65 | 1920×1080 |
| RX840-C10 | ROGIN | 84 | 3840×2160 |
