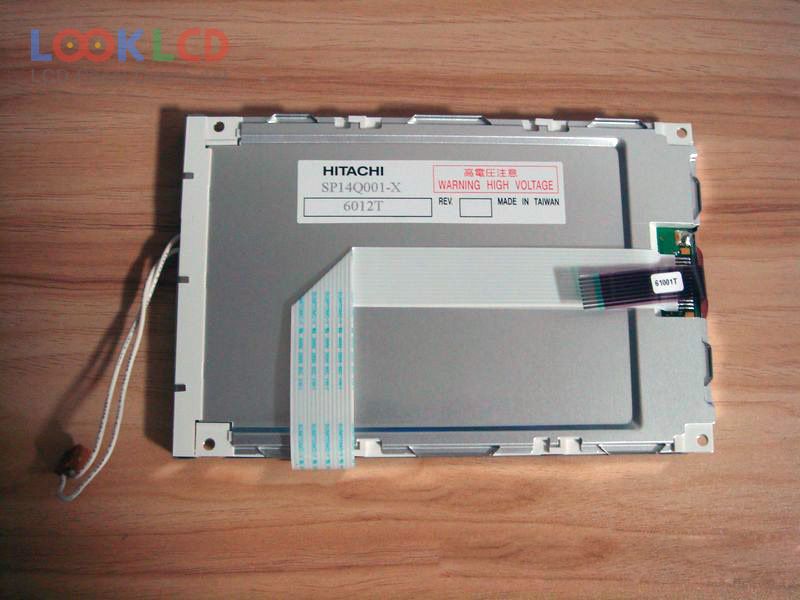

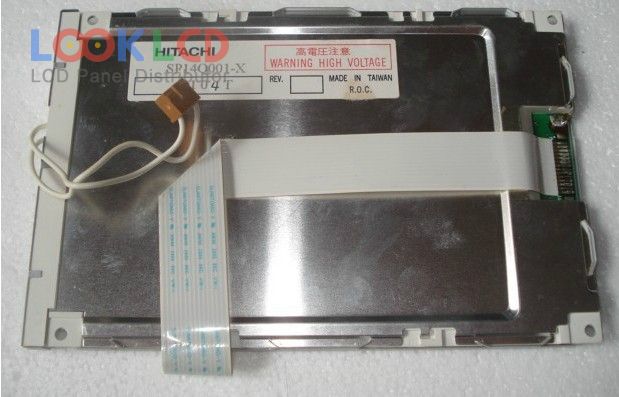

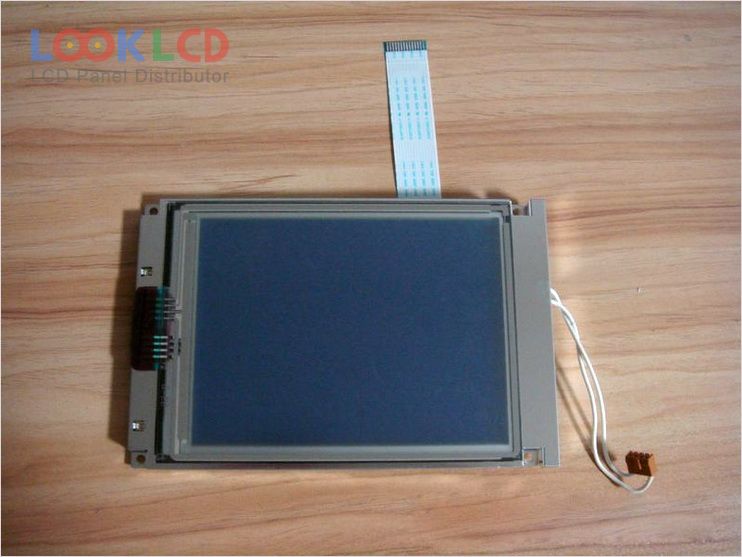

| Varenummer | SP14Q001-X |
| Mærke | KOE |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 65 |
| CR | |
| Farver | Monochrome |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | HITACHI |
| panel model | SP14Q001-X |
| paneltype | STN-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320×240 , QVGA |
| visningstilstand | STN, Blue mode (Negative), Transmissive |
| aktivt område | 115.185×86.385 mm |
| overflade | |
| lysstyrke | 65 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | Monochrome |
| responstid | |
| synsvinkel | |
| frekvens | 75Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (4-bit), 14 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | IA |
