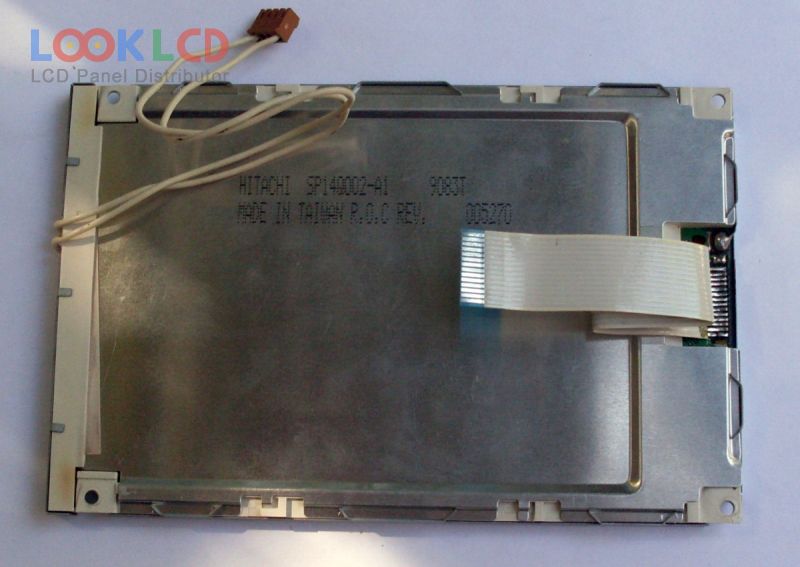

| Varenummer | SP14Q002-A1 |
| Mærke | KOE |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 140 |
| CR | 25:1 |
| Farver | Monochrome |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | HITACHI |
| panel model | SP14Q002-A1 |
| paneltype | FSTN-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320×240 , QVGA |
| visningstilstand | STN, Black/White (Negative), Transmissive |
| aktivt område | 115.185×86.385 mm |
| omrids | 167×109×10 mm |
| overflade | Antiglare |
| lysstyrke | 140 cd/m² (Typ.) |
| kontrastforhold | 25:1 (Typ.) |
| vise farver | Monochrome |
| responstid | 120/150 (Typ.)(Tr/Td) |
| synsvinkel | 40 (Typ.)(CR≥2, Φ2-Φ1)(L/R/U/D) |
| frekvens | 75Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (4-bit), 14 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VDD) |
| Ansøgning | IA |
