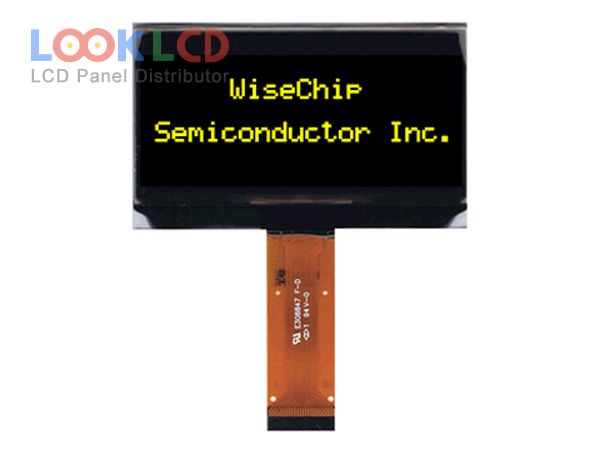

| Varenummer | UG-2864ASYPG01 |
| Mærke | WiseChip |
| Størrelse | 2.4 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | 80 |
| CR | |
| Farver | Mono(Yellow) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | WiseChip |
| panel model | UG-2864ASYPG01 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 2.4 inch |
| løsning | 128×64 |
| aktivt område | 55.01×27.49 mm |
| omrids | 60.5×37 mm |
| overflade | |
| lysstyrke | 80 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | Mono(Yellow) |
| synsvinkel | |
| driver ic | Built-in SSD1309 |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| Ansøgning | IA |
