| Varenummer | T576DC01 V0 |
| Mærke | AUO |
| Størrelse | 58 |
| Ansøgning | LCTV |
| Løsning | 2560×1080 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 4000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |

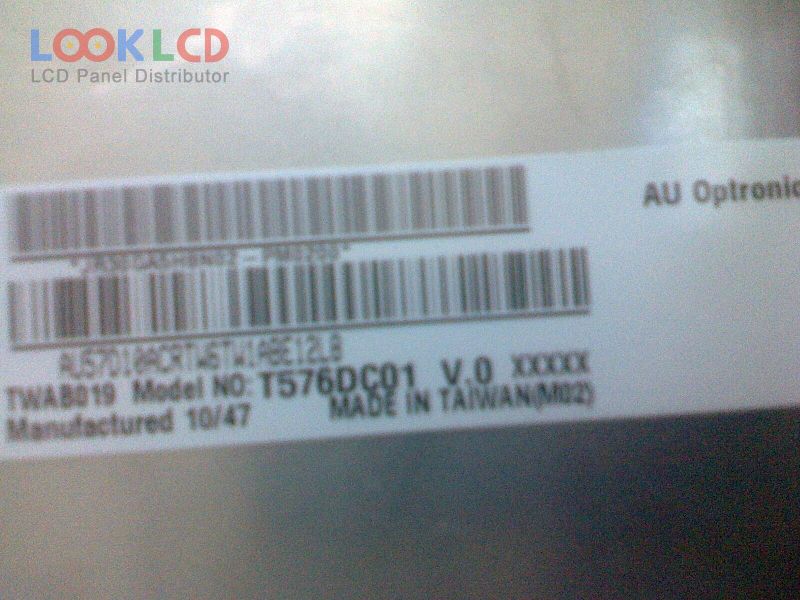

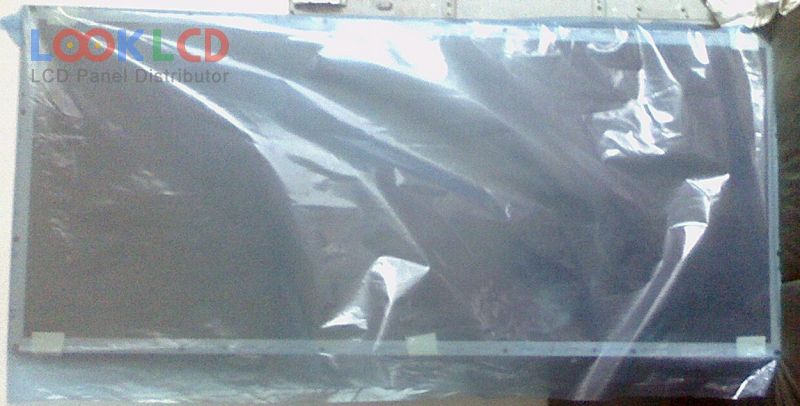

| panel model | T576DC01 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 58 inch |
| løsning | 2560(RGB)×1080 , CSHD |
| visningstilstand | AMVA3, Normally Black, Transmissive |
| aktivt område | 1349.76×569.43 mm |
| omrids | 1410.7×628.5 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 1.07B (10-bit), CIE193172% |
| responstid | 5.5 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (4 ch, 10-bit), 92 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
| LK580Z3LA13 | SHARP | 58 | 2560×1080 |
| T576DC01 V0 | AUO | 58 | 2560×1080 |
| V580DK1-KS2 | Innolux | 58 | 3840×2160 |
| V580DK1-LS1 | Innolux | 58 | 3840×2160 |
| V580DK1-QS2 | Innolux | 58 | 3840×2160 |
| V580DK2-LD1 | Innolux | 58 | 3840×2160 |
| V580HJ1-LD6 | Innolux | 58 | 1920×1080 |
| V580HJ1-PD6 | Innolux | 58 | 1920×1080 |
| V580HK1-LD6 | Innolux | 58 | 1920×1080 |
| LC420DUE-SFU1 | LG Display | 42 | 1920×1080 |
| LC420DUJ-SGE3 | LG Display | 42 | 1920×1080 |
| LTY320HN03 | Samsung | 31.5 | 1920×1080 |
| T260XW03 V3 | AUO | 26.0 | 1366×768 |
| T315XW04 V3 | AUO | 31.5 | 1366×768 |
| T420HW08 V0 CELL | AUO | 42 | 1920×1080 |
| T420HW09 V1 | AUO | 42 | 1920×1080 |
| T420XW01 V9 | AUO | 42 | 1366×768 |
| V460H1-L09 | Innolux | 46 | 1920×1080 |
| V650HP1-LS6 Rev.E | Innolux | 65 | 1920×1080 |
