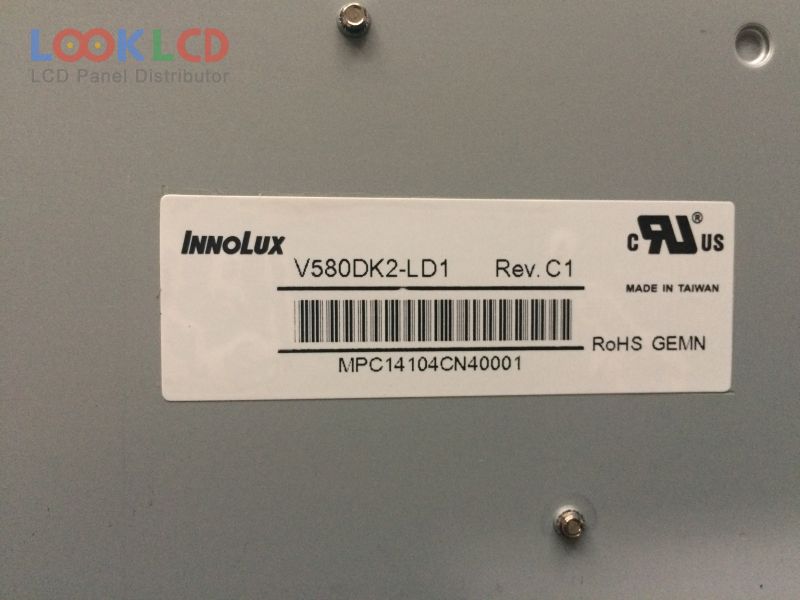

| Varenummer | V580DK2-LD1 |
| Mærke | Innolux |
| Størrelse | 58 |
| Ansøgning | PID |
| Løsning | 3840×2160 |
| Sammensætning | LCM |
| Lysstyrke | 1000 |
| CR | 4000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CHIMEI INNOLUX |
| panel model | V580DK2-LD1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 58 inch |
| løsning | 3840(RGB)×2160 , UHD |
| visningstilstand | Super MVA, Normally Black, Transmissive |
| aktivt område | 1270.08×721.44 mm |
| omrids | 1309.5×767×60.2 mm |
| overflade | Antiglare (Haze 1%), Hard coating (3H) |
| lysstyrke | 1000 cd/m² (Typ.) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 1.07B (8-bit + Hi-FRC), CIE193172% |
| responstid | 9.5 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (8 ch, 10-bit), 122 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | PID |
