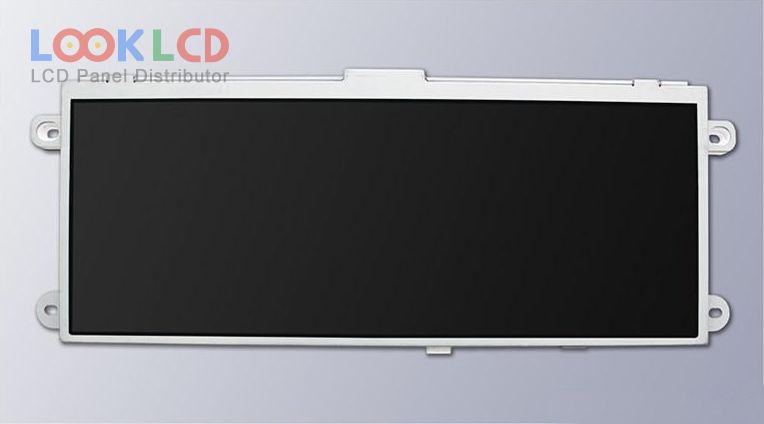

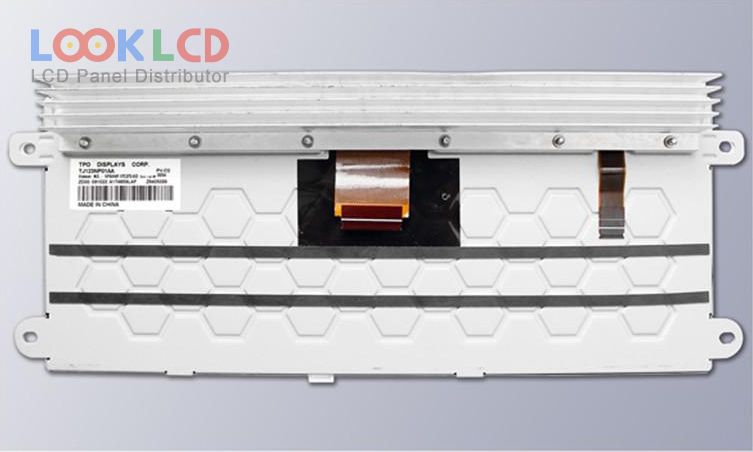

| Varenummer | TJ123NP01AA |
| Mærke | TPO |
| Størrelse | 12.3 |
| Ansøgning | CNS |
| Løsning | 1280×480 |
| Sammensætning | LCM |
| Lysstyrke | 1000 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL/RSDS |
| panel mærke | TPO |
| panel model | TJ123NP01AA |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 12.3 inch |
| løsning | 1280(RGB)×480 , DVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 291.84×109.44 mm |
| omrids | 333.8×134.6×44.1 mm |
| overflade | |
| lysstyrke | 1000 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193155% |
| responstid | 5/15 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | TTL/RSDS (1 ch, 6-bit), 50 pins |
| Ansøgning | CNS |
