| Varenummer | LQ5AW136 |
| Mærke | SHARP |
| Størrelse | 5.0 |
| Ansøgning | CNS |
| Løsning | 320×234 |
| Sammensætning | LCM |
| Lysstyrke | 320 |
| CR | 60:1 |
| Farver | |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | SHARP |
| panel model | LQ5AW136 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 320(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 102.2×74.8 mm |
| omrids | 126.8×89.6×16.8 mm |
| overflade | Antiglare, Antireflection |
| lysstyrke | 320 cd/m² (Typ.) |
| kontrastforhold | 60:1 (Min.) |
| vise farver | |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |

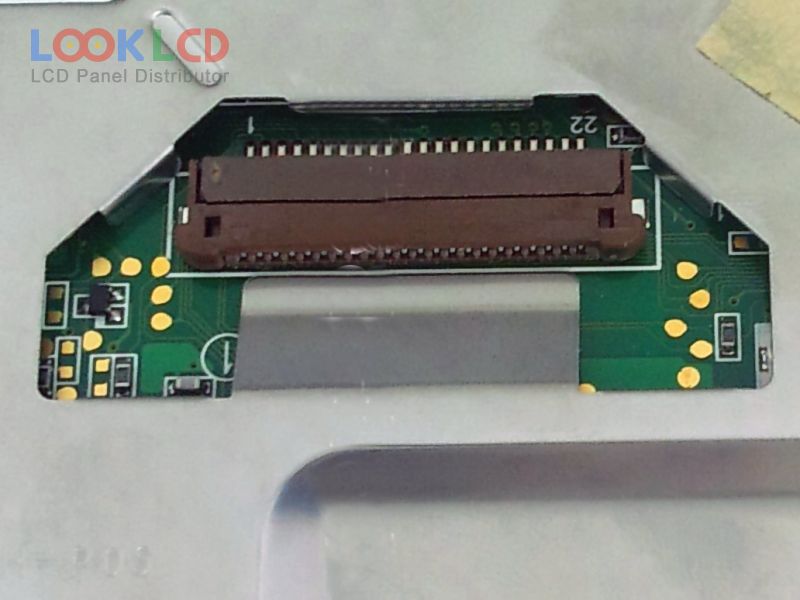

| signal interface | Analog RGB + Composite Video (NTSC/PAL), 22 pins |
| indgangsspænding | 8.0/-5V(Typ.)(VSH/VSL) |
| Ansøgning | CNS |
