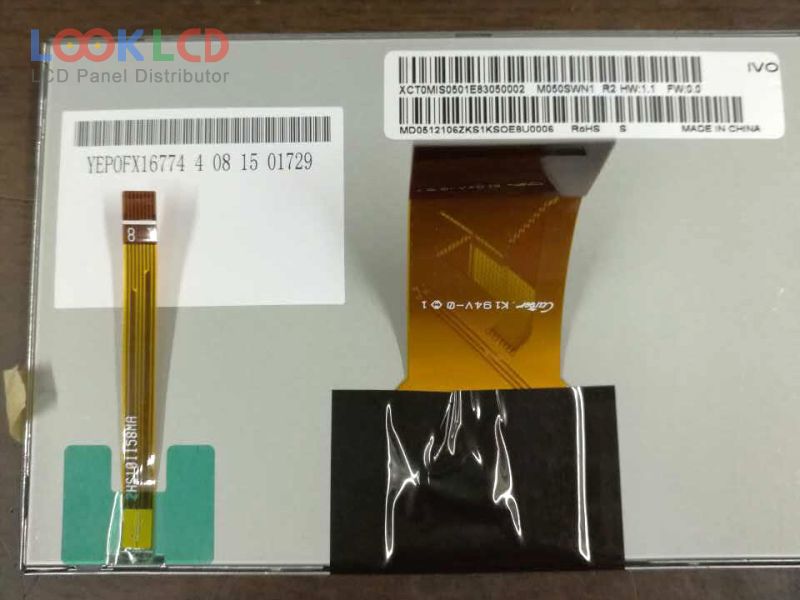

| Varenummer | M050SWN1 R2 |
| Mærke | IVO |
| Størrelse | 5.0 |
| Ansøgning | CNS |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | 585 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | IVO |
| panel model | M050SWN1 R2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 480(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 110.88×62.478 mm |
| omrids | 124×74.5×7.3 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 585 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193160% |
| responstid | 15 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
