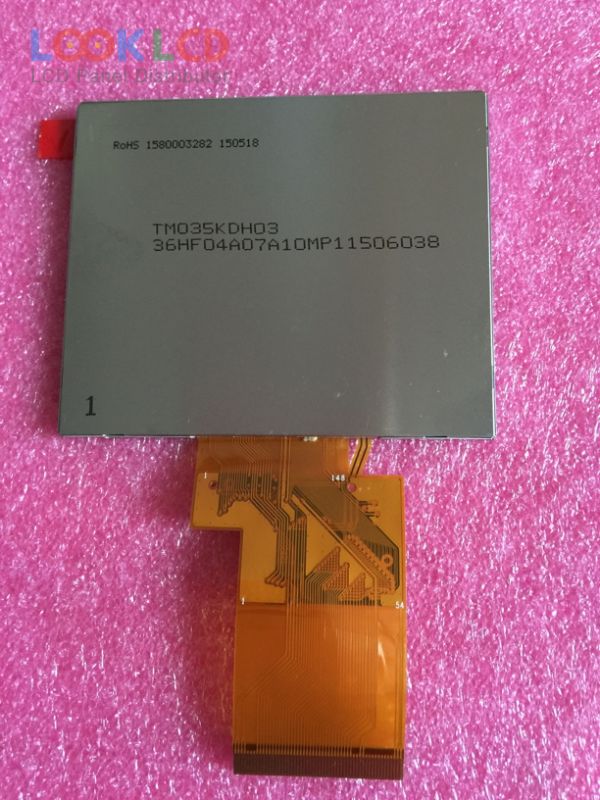

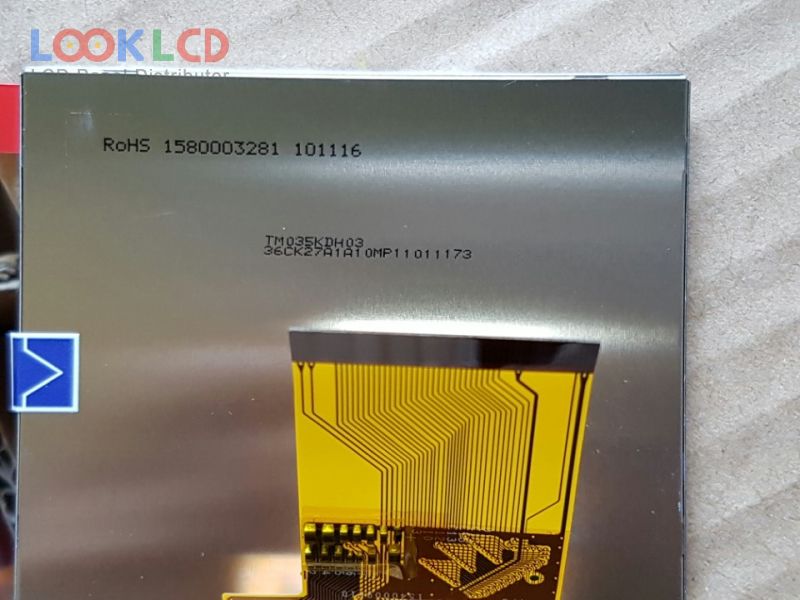

| Varenummer | TM035KDH03-36 |
| Mærke | Tianma |
| Størrelse | 3.5 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Parallel/Serial |
| panel mærke | TIANMA |
| panel model | TM035KDH03-36 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 70.08×52.56 mm |
| omrids | 76.9×63.9×3.35 mm |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DSC |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| PD035VX9 | E Ink | 3.5 | 480×640 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
| TM035KDH03 | Tianma | 3.5 | 320×240 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
| TM035KDH08 | Tianma | 3.5 | 320×240 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
| A015AN04 V6 | AUO | 1.5 | 280×220 |
| A017CN01 V2 | AUO | 1.7 | 480×240 |
| A025DN01 V9 | AUO | 2.5 | 320×240 |
| A027DTN01.3 | AUO | 2.7 | 320×240 |
| A030DW01 V0 | AUO | 3.0 | 320×240 |
| A030JTN01.1 | AUO | 3.0 | 960×480(dot) |
| LTV350QV-F07 | Samsung | 3.5 | 320×240 |
| PD035OX4 | E Ink | 3.5 | 320×234 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TM035KDH03 | Tianma | 3.5 | 320×240 |
