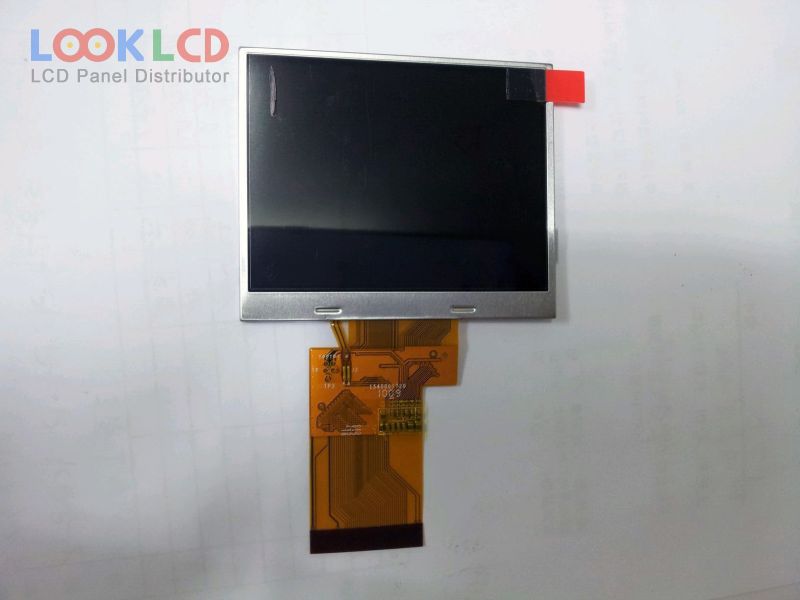

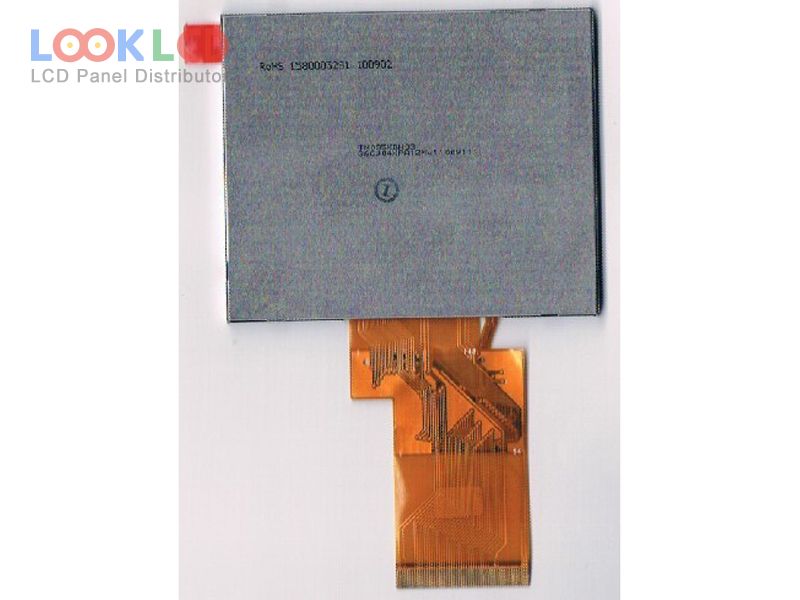

| Varenummer | TM035KDH03 |
| Mærke | Tianma |
| Størrelse | 3.5 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Parallel/Serial |
| panel mærke | TIANMA |
| panel model | TM035KDH03 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 70.08×52.56 mm |
| omrids | 76.9×63.9×3.35 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DSC |
