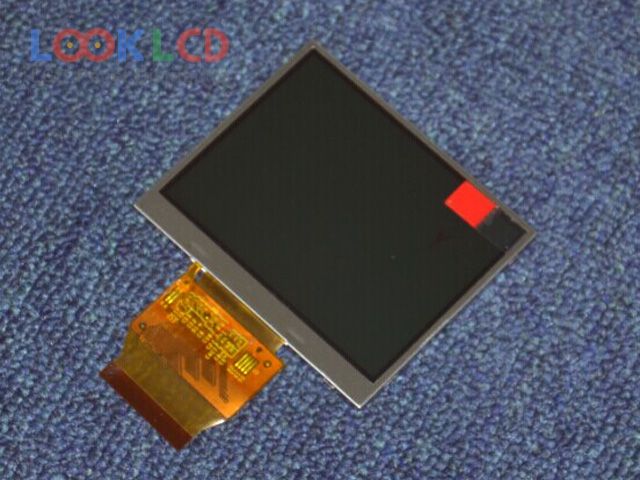

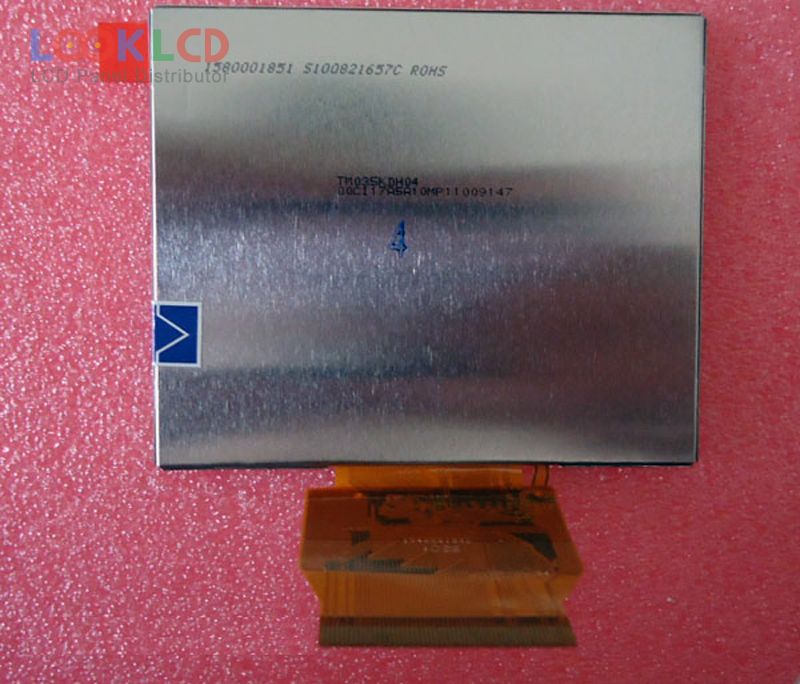

| Varenummer | TM035KDH04 |
| Mærke | Tianma |
| Størrelse | 3.5 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 420 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Parallel/Serial |
| panel mærke | TIANMA |
| panel model | TM035KDH04 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 70.08×52.56 mm |
| omrids | 76.9×63.9×3 mm |
| overflade | Clear |
| lysstyrke | 420 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (6-bit + Dithering), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DSC |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
| TM035KDH03 | Tianma | 3.5 | 320×240 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
| TM035KDH08 | Tianma | 3.5 | 320×240 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
| TM035NDH04 | Tianma | 3.5 | 272×480 |
| TM035PDZ00 | Tianma | 3.5 | 320×480 |
| TM035WBHG01 | Tianma | 3.5 | 480×640 |
| 990000881 | TPO | 3.0 | 960×480(dot) |
| A027DN03 V3 | AUO | 2.7 | 320×240 |
| A027DN04 V3 | AUO | 2.7 | 320×240 |
| A030DW01 V0 | AUO | 3.0 | 320×240 |
| A035QN02 VE | AUO | 3.5 | 320×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TD025THEA3 | TPO | 2.5 | 320×240 |
| TM035KDH03 | Tianma | 3.5 | 320×240 |
| UP018D11 | UNIPAC | 1.8 | 528×220(dot) |
