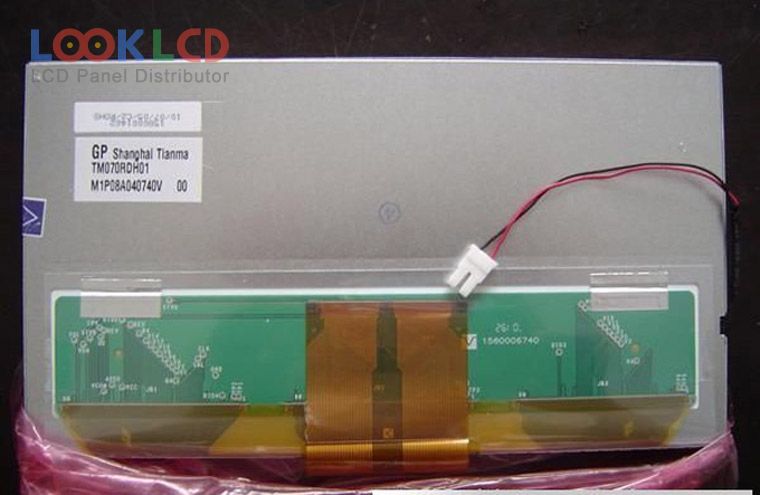

| Varenummer | TM070RDH01 |
| Mærke | Tianma |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM070RDH01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 157.2×82.32 mm |
| omrids | 167×93×6.1 mm |
| overflade | Antiglare |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S10PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 60 pins |
| indgangsspænding | 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| Ansøgning | CNS |
