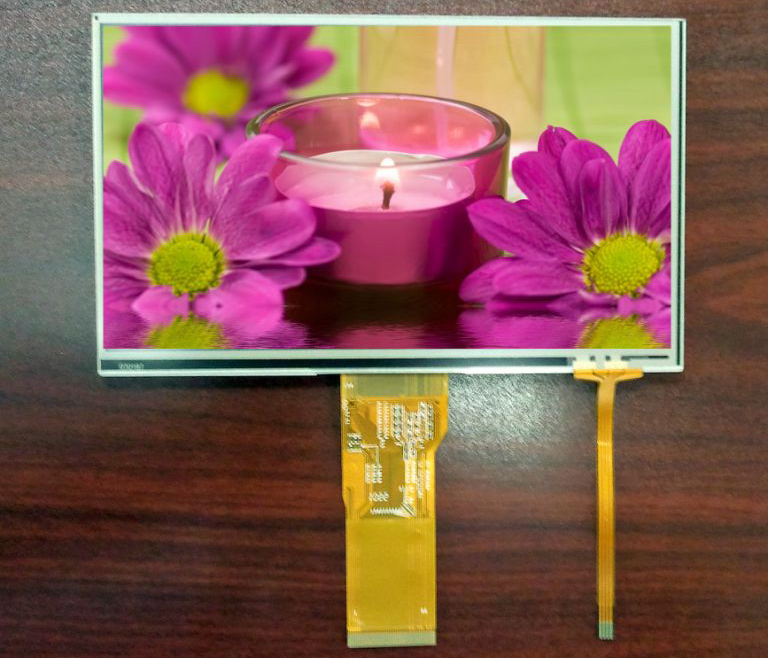

| Varenummer | TM070RBH10-00 |
| Mærke | TIANMA |
| Størrelse | 7.0 |
| Ansøgning | Industrial Digital P |
| Løsning | 800×480 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 500:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | 3S8P |
| Interface | Parallel |
| fabrikant | TIANMA |
| modelnavn | TM070RBH10-00 0 Compatible |
| skærmstørrelse | 7.0 inch |
| skærmtype | LCM , a-Si TFT-LCD |
| pixel antal | 800(RGB)×480 (WVGA) 134PPI |
| arrangement | RGB Vertical Stripe |
| aktivt område (mm) | 154.08 × 85.92 (H×V) |
| omrids (mm) | 164.9 × 100 × 7.1 (H×V×D) |
| rammeareal (mm) | - |
| behandling | Antiglare |
| luminans | 280 cd/m² (Typ.) |
| kontrastforhold | 500 : 1 (Typ.) (TM) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10) |
| respons | 25 (Typ.)(Tr+Td) ms |
| god udsigt kl | 12 o'clock |
| arbejdstilstand | TN, Normally White, Transmissive |
| farvedybde | 262K/16.2M 49% NTSC |
| baggrundsbelysning | 3S8P WLED , 20K hours , No Driver |
| masse | TBD |
| anvendes til | Industrial Digital Photo Frame Portable DVD Player MP3 PMP |
| opdateringshastighed | 60Hz |
| berøringsskærm | 4-wire Resistive Touch |
| signaltype | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| spændingsforsyning | 3.3/10.4/16/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| max. vurderinger | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
