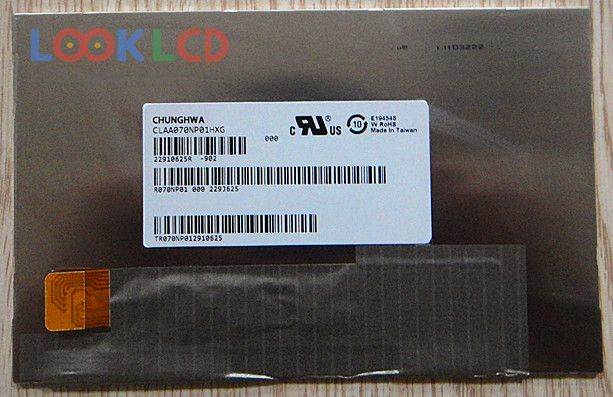

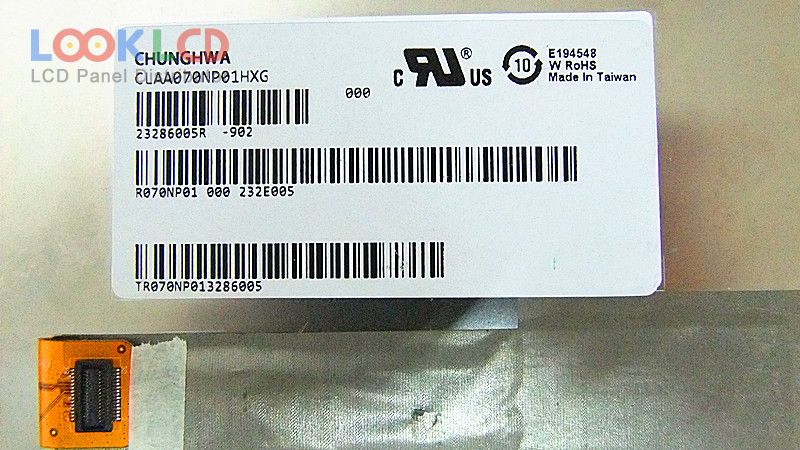

| Varenummer | CLAA070NP01 |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | UMPC |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA070NP01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | HFFS, Normally Black, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 164.25×100.11 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S7PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/9.3/17.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | UMPC |
| CLAA035JA01CW | CPT | 3.5 | 144×480 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| HSD070PWW1-B01 | HannStar | 7.0 | 1280×800 |
| HV056WX1-100 | HYDIS | 5.6 | 1280×800 |
| LB048WV1-TL01 | LG Display | 4.8 | 800×480 |
| LD070WS2-SL04 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL06 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LTL070AL01-L01 | Samsung | 7.0 | 1280×800 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| N070ICG-LD4 | Innolux | 7.0 | 1280×800 |
| N070Y1-T01 | Innolux | 7.0 | 800×480 |
