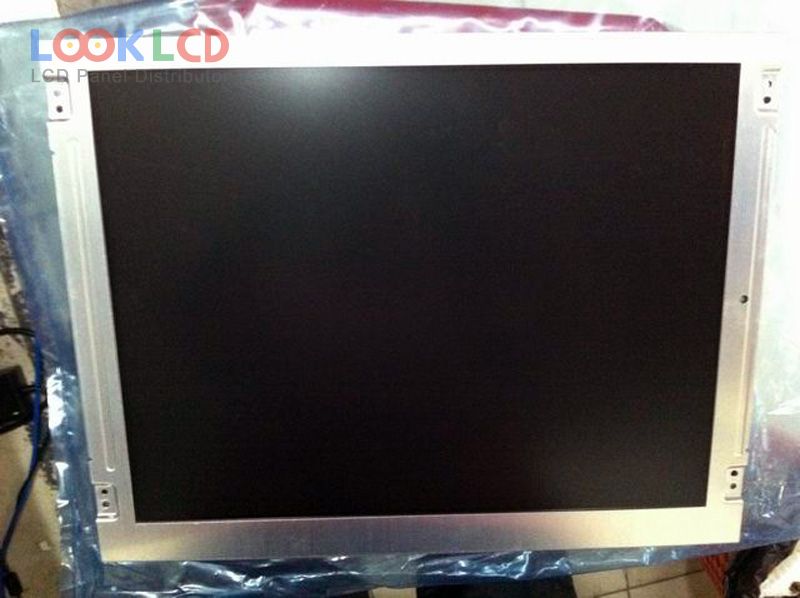

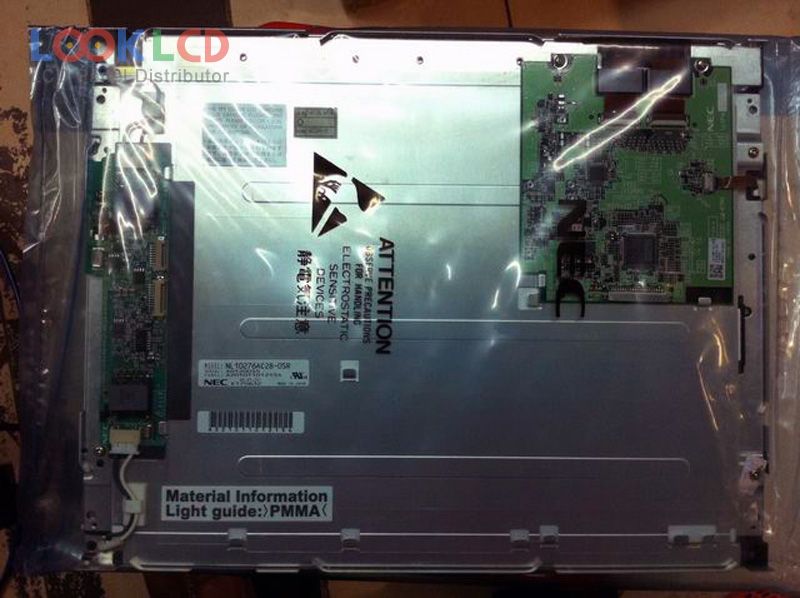

| Varenummer | NL10276AC28-05R |
| Mærke | NLT |
| Størrelse | 14.1 |
| Ansøgning | DMPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 150:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL10276AC28-05R |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 285.696×214.272 mm |
| omrids | 330×255×20.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193140% |
| responstid | 11/40 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/20/35 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 2 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
