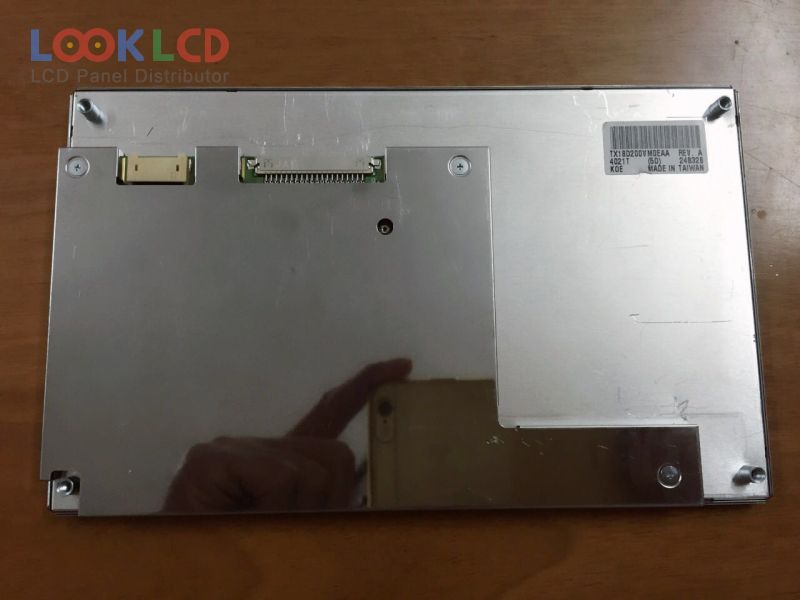

| Varenummer | TX18D200VM0EAA |
| Mærke | KOE |
| Størrelse | 7.0 |
| Ansøgning | IA |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 700 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | KOE |
| panel model | TX18D200VM0EAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | IPS-Pro, Normally Black, Transmissive |
| aktivt område | 155.52×87.48 mm |
| omrids | 169×104×10.3 mm |
| overflade | |
| lysstyrke | 700 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193174% |
| responstid | 23 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S10PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
