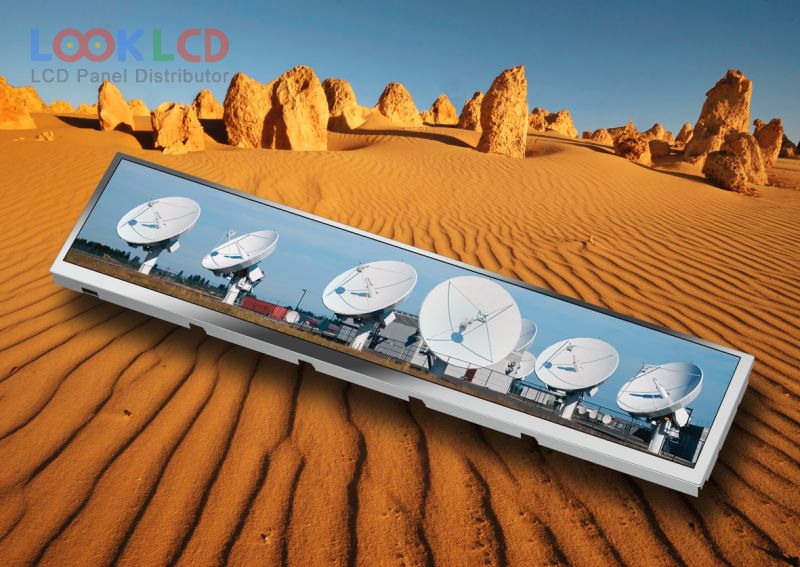

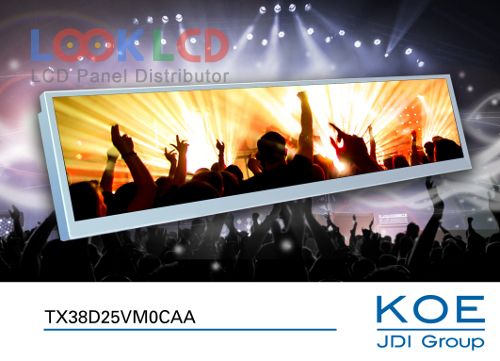

| Varenummer | TX38D25VM0CAA |
| Mærke | KOE |
| Størrelse | 14.9 |
| Ansøgning | IA |
| Løsning | 1280×242 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | KOE |
| panel model | TX38D25VM0CAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.9 inch |
| løsning | 1280(RGB)×242 |
| visningstilstand | IPS NP, Normally Black, Transmissive |
| aktivt område | 372.48×70.42 mm |
| omrids | 386.82×85.57 mm |
| overflade | |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
