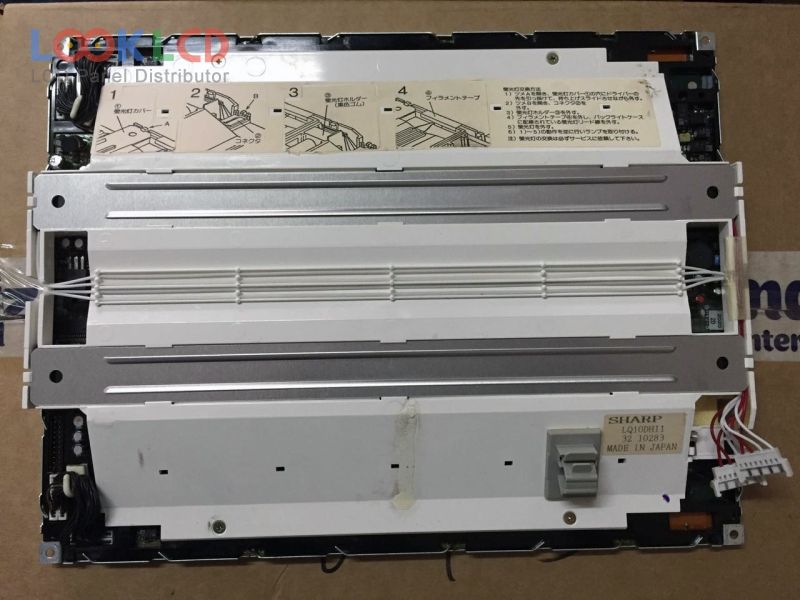

| Varenummer | LQ10DH11 |
| Mærke | SHARP |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 80 |
| CR | 60:1 |
| Farver | 512 |
| Baggrundsbelysning | HCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ10DH11 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 283×217 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 80 cd/m² (Typ.) |
| kontrastforhold | 60:1 (Min.) |
| vise farver | 512 (3-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 2 pcsHCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 3-bit), 22 pins |
| indgangsspænding | 5.0/12.0V (Typ.)(VCC/VDD) |
| Ansøgning | IA |
