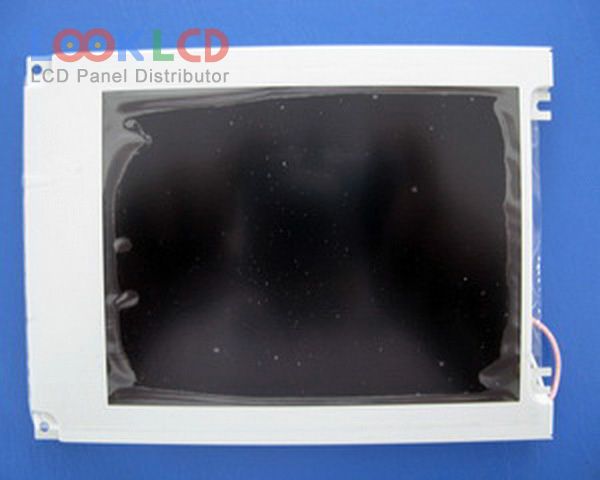

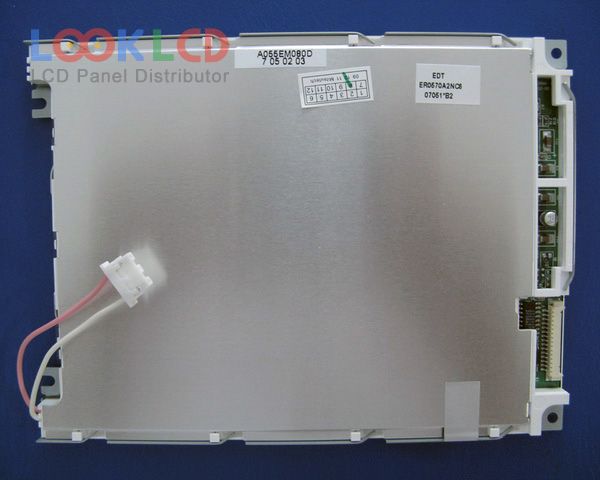

| Varenummer | ER0570A2NC6 |
| Mærke | EDT |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 50:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | EDT |
| panel model | ER0570A2NC6 |
| paneltype | CSTN-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | STN, Normally Black, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 154.6×114.8×8.8 mm |
| overflade | |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 50:1 (Typ.) |
| vise farver | Color |
| responstid | 350/250 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/38 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 120Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (8-bit), 15 pins |
| indgangsspænding | 3.0/5.0V (Typ.)(VDD) |
| Ansøgning | IA |
| EL320.240.36 AG | Lumineq | 5.7 | 320×240 |
| ER057005NC6 | EDT | 5.7 | 320×240 |
| ER0570A2NC6 | EDT | 5.7 | 320×240 |
| ER0570B2NC6 | EDT | 5.7 | 320×240 |
| KCG057QV1DB-G500 | Kyocera | 5.7 | 320×240 |
| LCBHBT161M | NAN YA | 5.7 | 320×240 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| LQ057V3LG11 | SHARP | 5.7 | 640×480 |
| SP14Q001-X | KOE | 5.7 | 320×240 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| EL480.60.43 CC | PLANAR | 8.1 | 480×60 |
| G150XG01 V2 | AUO | 15.0 | 1024×768 |
| G150XG03 V4 | AUO | 15.0 | 1024×768 |
| G150XTN03.1 | AUO | 15.0 | 1024×768 |
| LM8V31 | SHARP | 7.7 | 640×480 |
| LQ104S1LG32 | SHARP | 10.4 | 800×600 |
| NL6448AC20-06 | NLT | 6.5 | 640×480 |
| NL6448BC26-09 | NLT | 8.4 | 640×480 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
