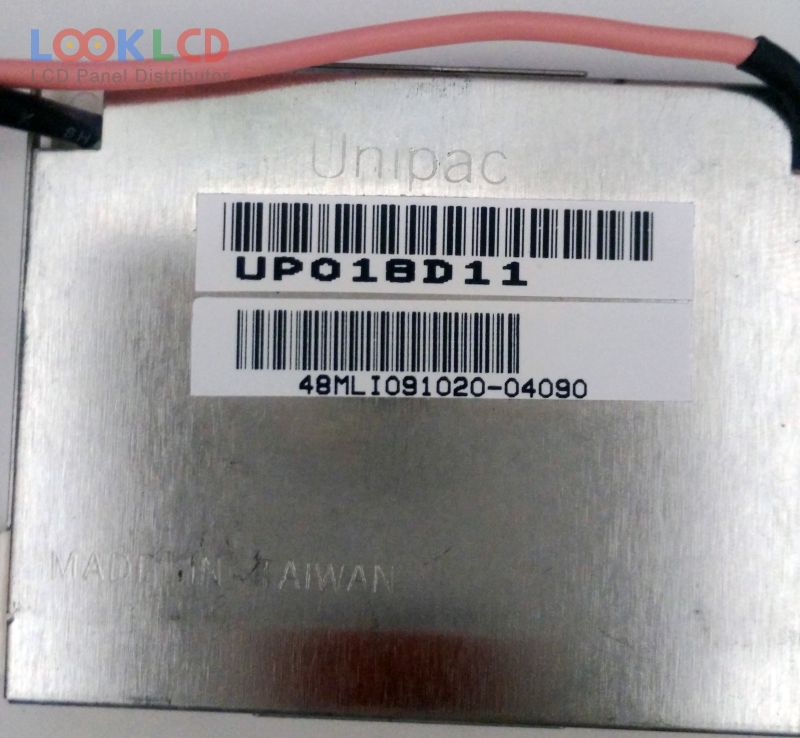

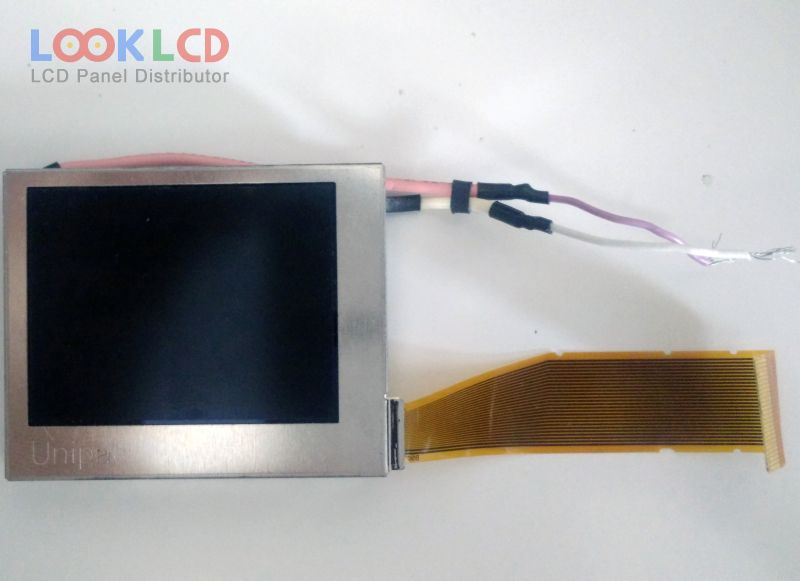

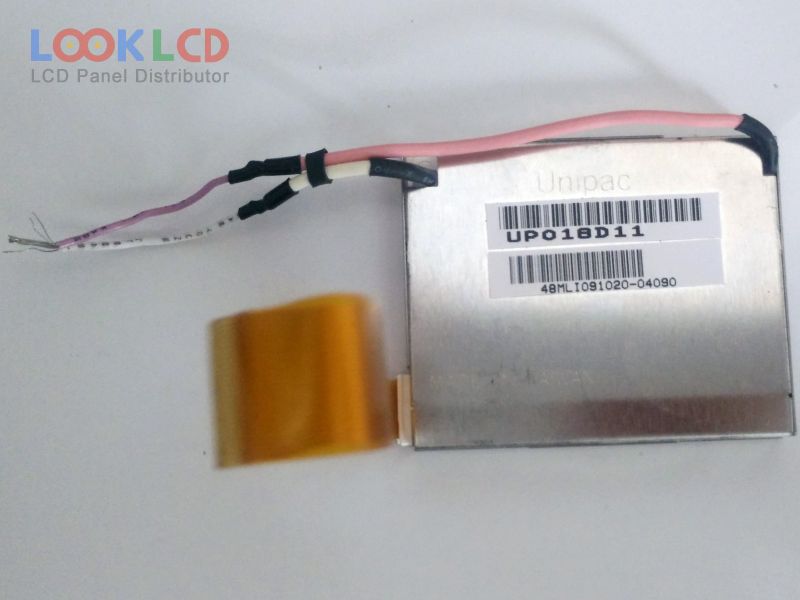

| Varenummer | UP018D11 |
| Mærke | UNIPAC |
| Størrelse | 1.8 |
| Ansøgning | DSC |
| Løsning | 528×220(dot) |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 150:1 |
| Farver | |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | UNIPAC |
| panel model | UP018D11 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 1.8 inch |
| løsning | 528×220 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 36.43×27.5 mm |
| omrids | 48.6×39.6 mm |
| overflade | |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Typ.) |
| vise farver | |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| indgangsspænding | 5/5/15V (Typ.)(VCC/AVDD/VGH) |
| Ansøgning | DSC |
| 990000270 | TPO | 2.5 | 320×240 |
| A015AN03 | AUO | 1.46 | 280×220 |
| A017CN01 V2 | AUO | 1.7 | 480×240 |
| A027DN01 VQ | AUO | 2.7 | 320×240 |
| A027DN01 VR | AUO | 2.7 | 320×240 |
| COM30T3N64ZLG | ORTUSTECH | 3.0 | 320×240 |
| LS025A8DZ01S | SHARP | 2.5 | 320×240 |
| LTV350QV-F04 | Samsung | 3.5 | 320×240 |
| PT035TN23 V.3 | Innolux | 3.5 | 320×240 |
| TD025THEG1 | TPO | 2.5 | 320×240 |
