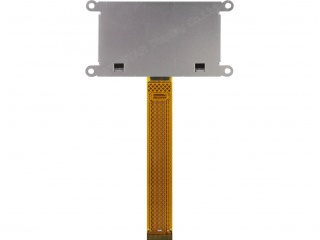

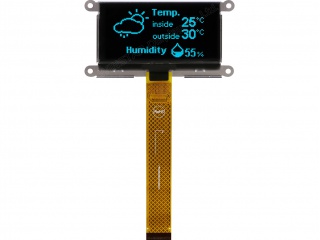

| Varenummer | WEF012864QS |
| Mærke | Winstar |
| Størrelse | 2.7 |
| Ansøgning | Home Appliance Handh |
| Løsning | 128×64 |
| Sammensætning | PM-OLED , OLED |
| Lysstyrke | |
| CR | |
| Farver | Mono(Blue) |
| Baggrundsbelysning | self |
| Interface | 8-bit |
| panel mærke | Winstar |
| panelstørrelse | 2.7" |
| løsning | 128×64, 52PPI |
| udstillingsområde | 61.41(W)×30.69(H) mm |
| konturstørrelse | 89.7(W)×47.2(H) mm |
| synsvinkel | - |
| bedste udsigt på | Symmetry |
| vise farver | Mono(Blue) |
| frekvens | - |
| driver ic | COG Built-in SSD1309ZC |
| panelvægt | - |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 30 pins FPC |
| indgangsspænding | 3.0/13V (Typ.)(VDD/VCC) |
| miljø | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
| panel model | WEF012864QS |
| paneltype | PM-OLED , OLED |
| pixel format | Rectangle |
| bezel åbning | 63.41(W)×32.69(H) mm |
| overflade | - |
| visningstilstand | - |
| responstid | - |
| lampe type | self |
| berøringsskærm | Without |
| Ansøgning | Home Appliance Handheld & PDA Healthcare Instruments & Meters |
| A027DN01 V1 | AUO | 2.7 | 320×240 |
| A027DN03 V3 | AUO | 2.7 | 320×240 |
| A027DN04 V3 | AUO | 2.7 | 320×240 |
| DLC0270CUOF | Other | 2.7 | 256×64 |
| HGS128645-Y-EH-LV | Other | 2.7 | 128×64 |
| OEL9M0065-B-E | Other | 2.7 | 256×64 |
| OEL9M0065-R-E | Other | 2.7 | 256×64 |
| OEL9M5003-W-E | Other | 2.7 | 128×64 |
| TM027CDH02 | Tianma | 2.7 | 320×240 |
| UG-2864ASYIG01 | WiseChip | 2.7 | 128×64 |
