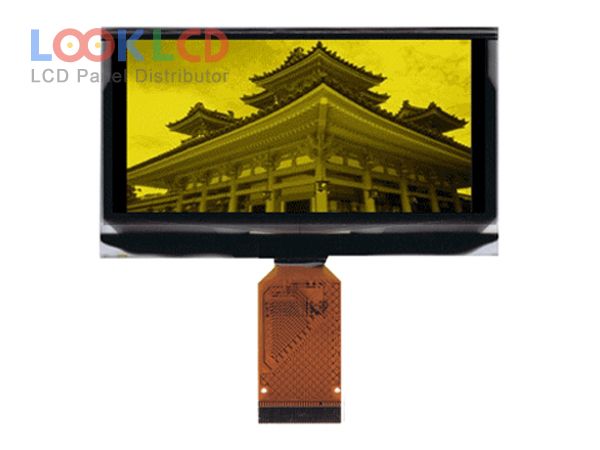

| Varenummer | UG-2864ASYIG01 |
| Mærke | WiseChip |
| Størrelse | 2.7 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | 80 |
| CR | |
| Farver | Grayscale(Y) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI |
| panel mærke | Univision |
| panel model | UG-2864ASYIG01 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 2.7 inch |
| løsning | 128×64 |
| aktivt område | 61.41×30.69 mm |
| omrids | 73×41.86 mm |
| overflade | |
| lysstyrke | 80 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | Grayscale(Y) (4-bit) |
| synsvinkel | |
| signal interface | CPU/SPI |
| rohs: | |
| Ansøgning | IA |
