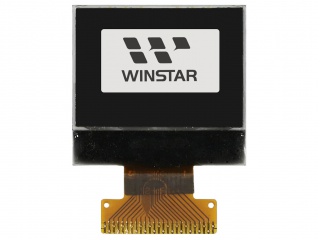

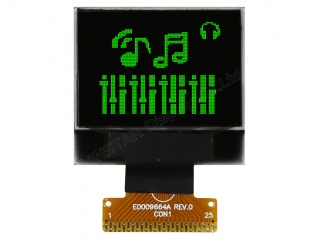

| Varenummer | WEO009664AG |
| Mærke | Winstar |
| Størrelse | 0.95 |
| Ansøgning | Wearable MP3 PMP |
| Løsning | 96×64 |
| Sammensætning | PM-OLED, OLED |
| Lysstyrke | |
| CR | |
| Farver | Mono(Green) |
| Baggrundsbelysning | self |
| Interface | 8-bit |
| panel mærke | Winstar |
| panel model | WEO009664AG |
| panelstørrelse | 0.95" |
| paneltype | PM-OLED, OLED |
| løsning | 96×64, 121PPI |
| pixel format | Rectangle |
| udstillingsområde | 19.946(W)×13.418(H) mm |
| bezel åbning | 21.953(W)×15.424(H) mm |
| konturstørrelse | 24.9(W)×22.95(H) ×1.95(D) mm |
| overflade | - |
| synsvinkel | - |
| visningstilstand | - |
| bedste udsigt på | Symmetry |
| responstid | - |
| vise farver | Mono(Green) |
| lampe type | self |
| frekvens | - |
| berøringsskærm | Without |
| driver ic | COG Built-in SSD1305Z |
| panelvægt | - |
| Ansøgning | Wearable MP3 PMP |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 25 pins FPC |
| indgangsspænding | 3.0V (Typ.) |
| miljø | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
| L3C09X-82G00 | Epson | 0.95 | 1280×800 |
| OEL9M1010-B-E | Other | 0.95 | 96×64 |
| OEL9M1010-G-E | Other | 0.95 | 96×64 |
| OEL9M1010-R-E | Other | 0.95 | 96×64 |
| OEL9M1010-W-E | Other | 0.95 | 96×64 |
| RGS10096064FR020 | RiTdisplay | 0.95 | 96×64 |
| RGS10096064WR001 | RiTdisplay | 0.95 | 96×64 |
| UG-9664HDDAG01 | WiseChip | 0.95 | 96×64 |
| UG-9664HLBAG01 | WiseChip | 0.95 | 96×64 |
| UG-9664HSWAG01 | WiseChip | 0.95 | 96×64 |
