| Varenummer | 43WQW3H |
| Mærke | SII |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 400:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SII |
| panel model | 43WQW3H |

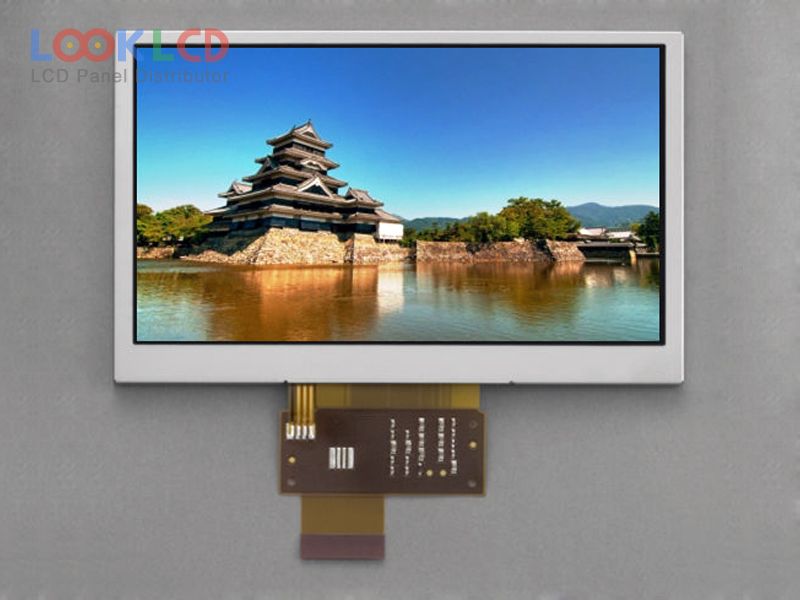

| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.2M (6-bit + Dithering), CIE193150% |
| responstid | 15/35 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 4S2PWLED |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 51 pins |
| Ansøgning | PND |
| 990000475P | TPO | 4.3 | 800×480 |
| HSD043I9W1-A00-R0 | HannStar | 4.3 | 480×272 |
| HST043BOH57-40AV0 | Other | 4.3 | 480×272 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LMS430HF02 | Samsung | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
| TS40WD2B-03 | Other | 4.0 | 480×272 |
