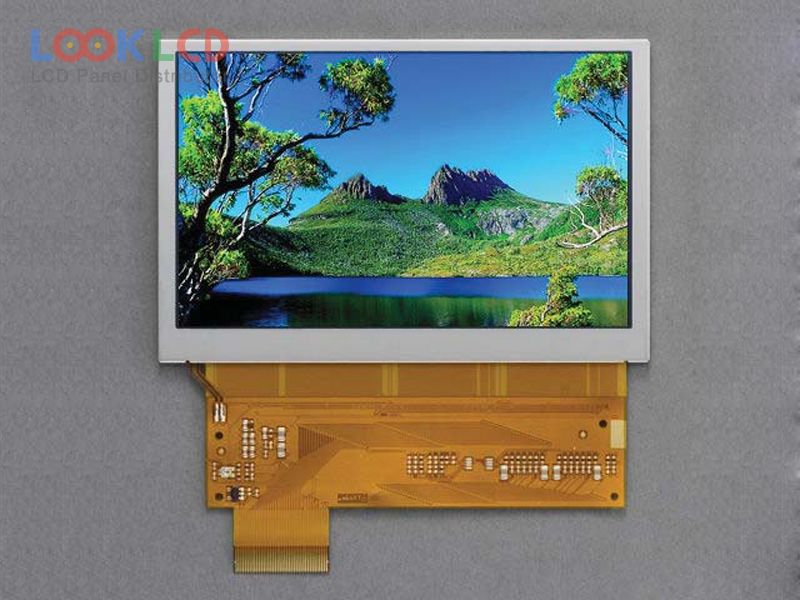

| Varenummer | 43WVF0H |
| Mærke | SII |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SII |
| panel model | 43WVF0H |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | FFS, Normally Black, Transmissive |
| aktivt område | 93.6×56.16 mm |
| omrids | 106×69.8 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 10S1PWLED |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(DVDD/AVDD) |
| Ansøgning | PND |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT050TN43 V.1 | Innolux | 5.0 | 800×480 |
| ET043001DM6 | EDT | 4.3 | 480×272 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| P0430WQLC-T | CMEL | 4.3 | 480×272 |
| PW035XS1 | E Ink | 3.5 | 320×234 |
