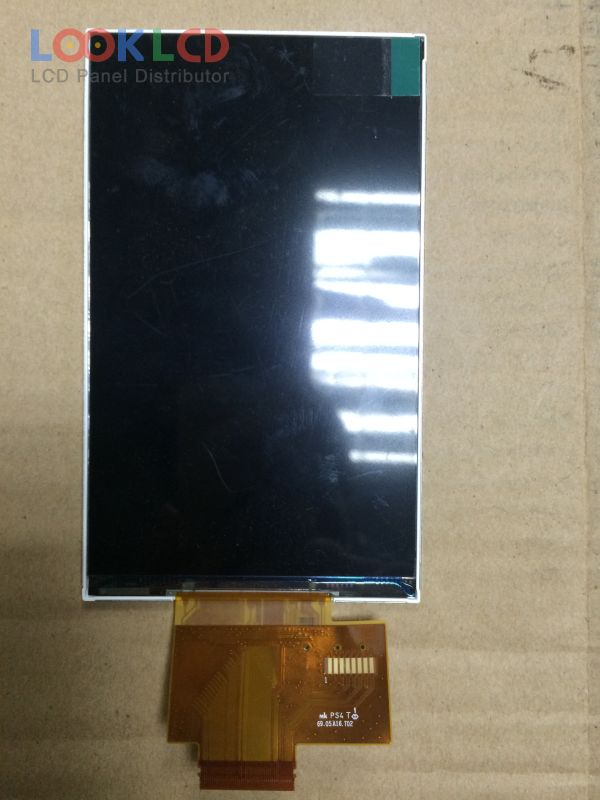

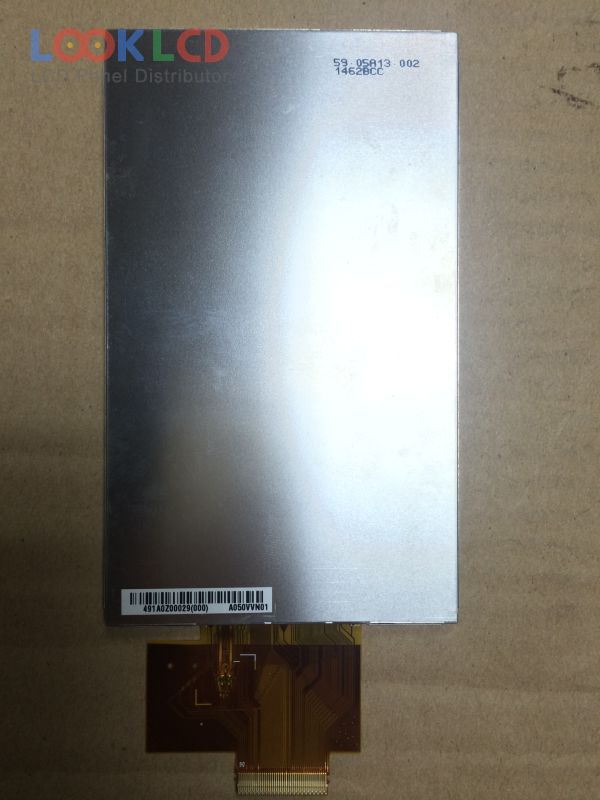

| Varenummer | A050VVN01.0 |
| Mærke | AUO |
| Størrelse | 5.0 |
| Ansøgning | EBK |
| Løsning | 480×800 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A050VVN01.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 480(RGB)×800 , WVGA |
| visningstilstand | AMVA, Normally Black, Transmissive |
| aktivt område | 64.8×108 mm |
| omrids | 71.2×119.5×2.81 mm |
| overflade | |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 20/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 90 pins |
| indgangsspænding | 2.8/2.8V (Typ.)(VCI/VDDI) |
| Ansøgning | EBK |
