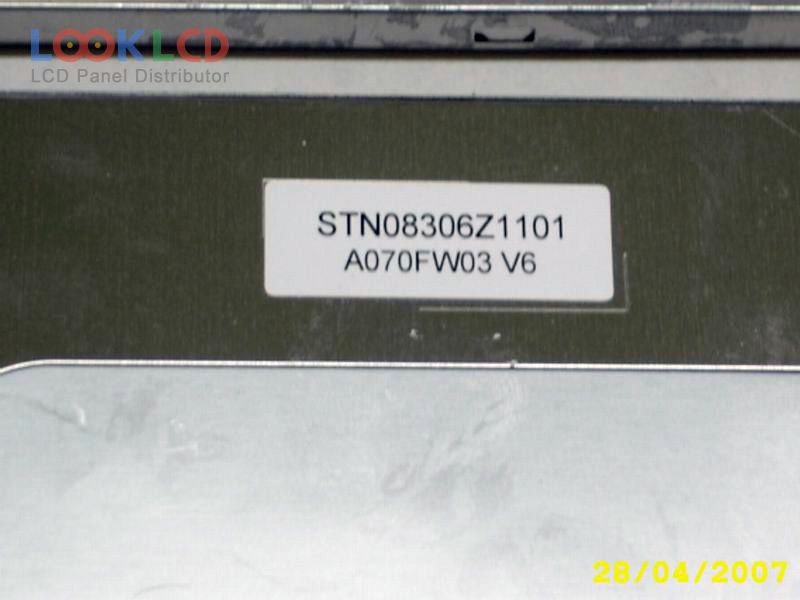

| Varenummer | A070FW03 V6 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 300:1 |
| Farver | |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | AUO |
| panel model | A070FW03 V6 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 480(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×86.58 mm |
| omrids | 164.9×100 mm |
| overflade | Antiglare (Haze 25%) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | |
| responstid | 12/18 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| rohs: | |
| Ansøgning | CNS |
| A070FW01 | AUO | 7.0 | 480×234 |
| A070FW03 V1 | AUO | 7.0 | 480×234 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| A070FW03 V4 | AUO | 7.0 | 480×234 |
| A070FW03 V6 | AUO | 7.0 | 480×234 |
| A070FW03 V7 | AUO | 7.0 | 480×234 |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| A070FW03 VB | AUO | 7.0 | 480×234 |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| AT101WSM-NW0-3800(3900) | BOE | 10.1 | 1024×600 |
| C061FW01 V0 | AUO | 6.1 | 480×234 |
| C065GW03 V0 | AUO | 6.5 | 400×240 |
| C080VW04 V0 | AUO | 8.0 | 800×480 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| G080Y1-T01 | Innolux | 8.0 | 800×480 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| HSD080IFW1-A00 | HannStar | 8.0 | 1024×600 |
| LQ042B5DG02 | SHARP | 4.2 | 400×96 |
