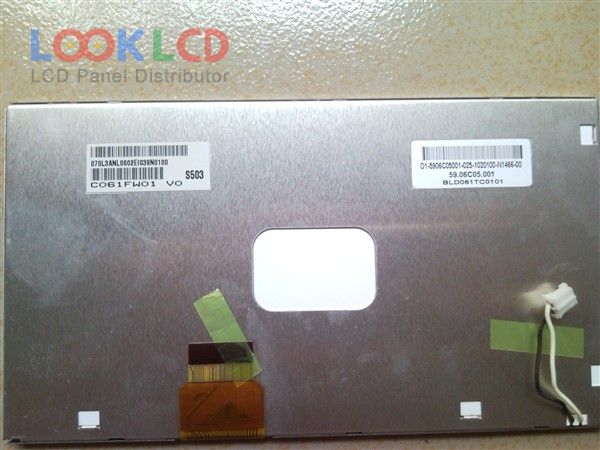

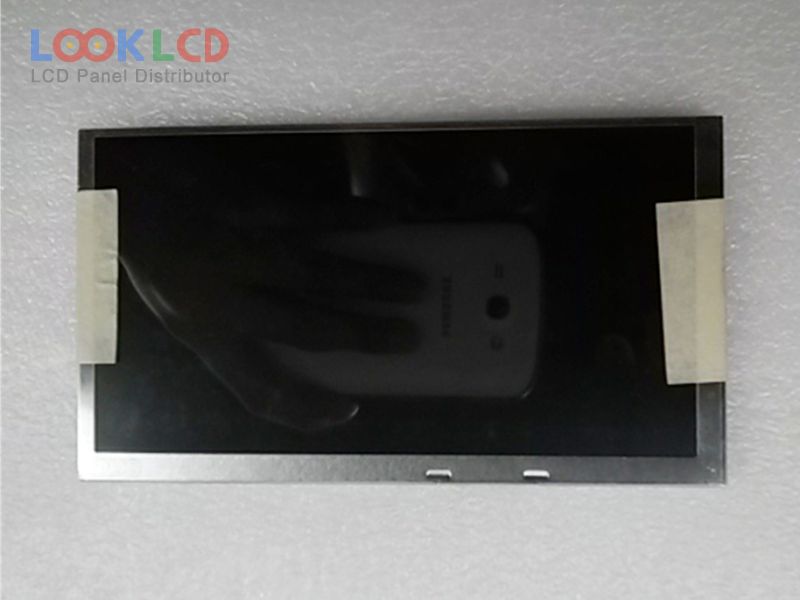

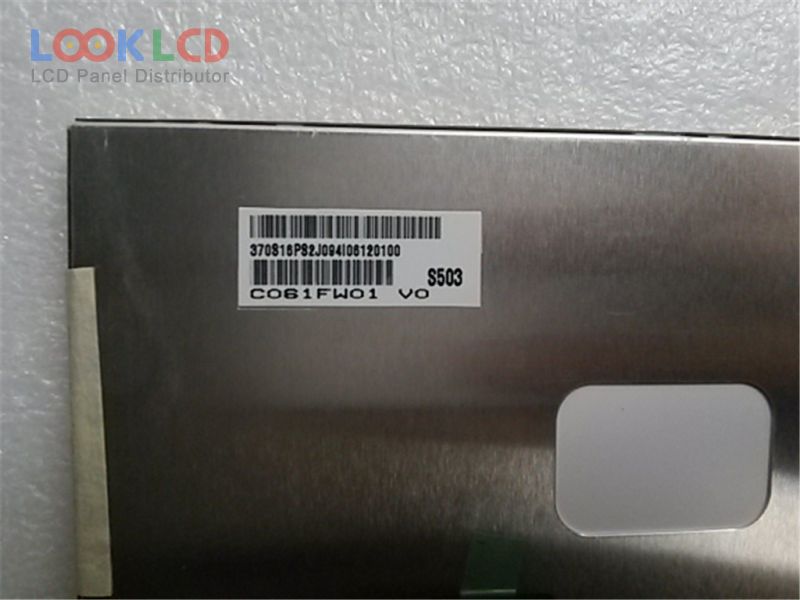

| Varenummer | C061FW01 V0 |
| Mærke | AUO |
| Størrelse | 6.1 |
| Ansøgning | CNS |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 300:1 |
| Farver | Full color |
| Baggrundsbelysning | WLED |
| Interface | Analog |
| panel mærke | AUO |
| panel model | C061FW01 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.1 inch |
| løsning | 480(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 136.08×71.955 mm |
| omrids | 149×82.9×6.1 mm |
| overflade | Antiglare (Haze 25%) |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | Full color , CIE193150% |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 7S1PWLEDWithout Driver |
| signal interface | TFT Specific Analog RGB, 30 pins |
| indgangsspænding | 5.0/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| A061FW01 V0 | AUO | 6.1 | 480×234 |
| C061FW01 V0 | AUO | 6.1 | 480×234 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| K6488L-FF | CITIZEN | 6.1 | 640×480 |
| LA061WQ1-TD04 | LG Display | 6.1 | 480×272 |
| LA061WQ1-TD05 | LG Display | 6.1 | 480×272 |
| PM061WX1 | E Ink | 6.1 | 800×480 |
| DLC0800AIG-2 | Other | 8.0 | 800×480 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| G141I1-L01 | Innolux | 14.1 | 1280×800 |
| L5F30369P01 | SANYO | 6.5 | 800×480 |
| L5F30818P03 | SONY | 6.5 | 800×480 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| LQ070T5DR02 | SHARP | 7.0 | 480×240 |
| LQ080Y5DG02 | SHARP | 8.0 | 800×480 |
| TD070WGCB1 | TPO | 7.0 | 854×480 |
