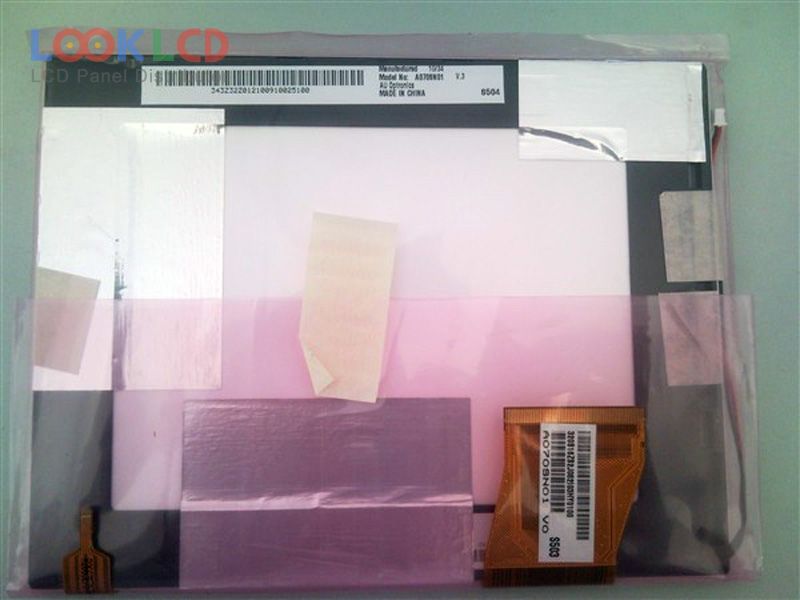

| Varenummer | A070SN01 V3 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | DPF |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A070SN01 V3 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 141.6×106.2 mm |
| omrids | 154×119.2×6.74 mm |
| overflade | Antiglare (Haze 8%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 3/13 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 60 pins |
| indgangsspænding | 3.3/11.6/15/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ansøgning | DPF |
