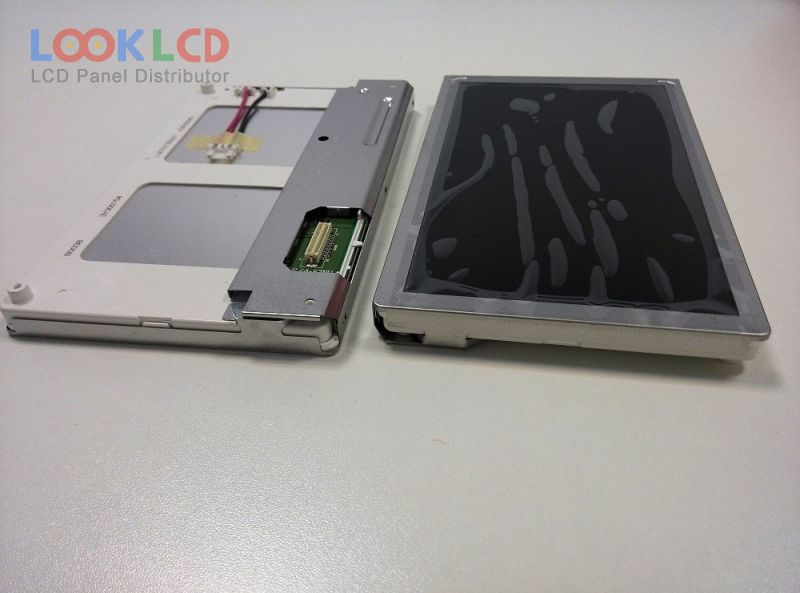

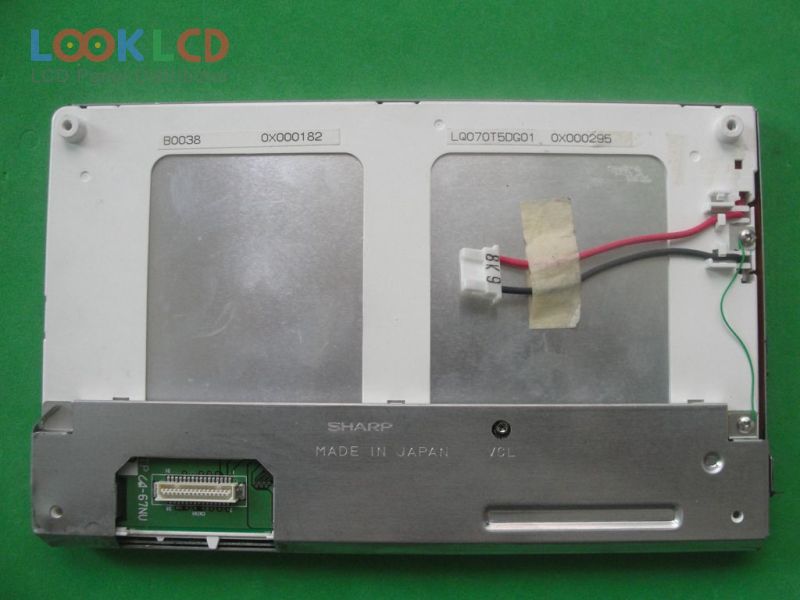

| Varenummer | LQ070T5DG01 |
| Mærke | SHARP |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 854×480 |
| Sammensætning | LCM |
| Lysstyrke | 410 |
| CR | 60:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ070T5DG01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 854(RGB)×480 , FWVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 155×87.12 mm |
| omrids | 176.9×109.3 mm |
| overflade | Antiglare |
| lysstyrke | 410 cd/m² (Typ.) |
| kontrastforhold | 60:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| indgangsspænding | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| Ansøgning | CNS |
