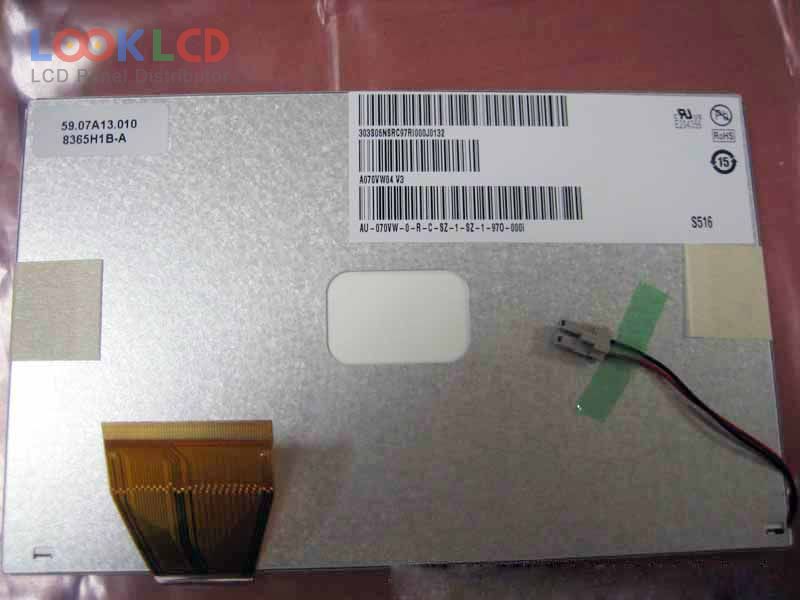

| Varenummer | A070VW04 V3 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A070VW04 V3 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 164×103×5.4 mm |
| overflade | Antiglare |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 12/18 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S7PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| indgangsspænding | 3.3/11/18/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ansøgning | MP4 |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| A070VW01 V1 | AUO | 7.0 | 800×480 |
| A070VW01 V2 | AUO | 7.0 | 800×480 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| A070VW04 V3 | AUO | 7.0 | 800×480 |
| A070VW04 V4 | AUO | 7.0 | 800×480 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| A070VW05 V2 | AUO | 7.0 | 800×480 |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| BA070WS1-400 | BOE | 7.0 | 1024×600 |
| BA070WS1-402 | BOE | 7.0 | 1024×600 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| DLC0700MIG | Other | 7.0 | 800×480 |
| ED070NA-01N | Innolux | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| LMS700KF06 | Samsung | 7.0 | 800×480 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
