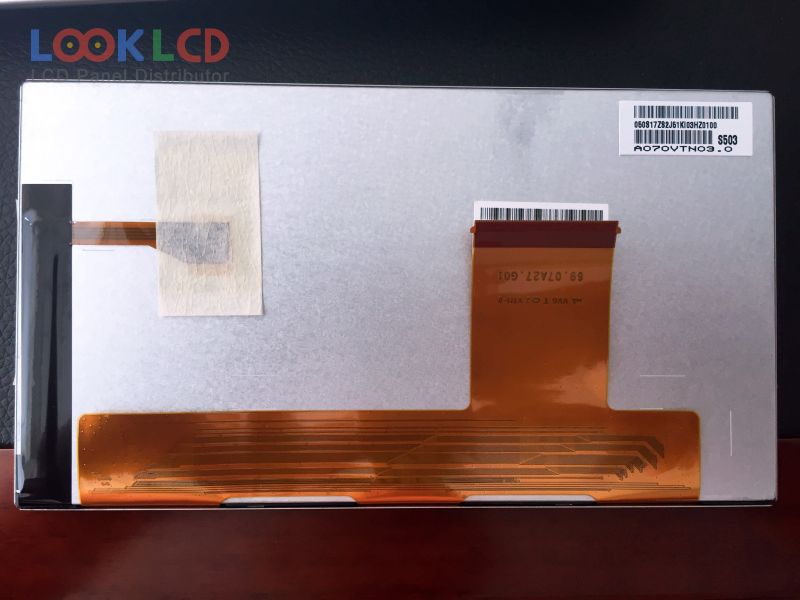

| Varenummer | A070VTN03.0 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A070VTN03.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 157.2×83.32 mm |
| omrids | 167×93 mm |
| overflade | Antiglare |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| indgangsspænding | 3.3/9.8/19/-9V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | CNS |
