| Varenummer | NL3224AC35-05 |
| Mærke | NLT |
| Størrelse | 5.5 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | Full color |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | NEC |

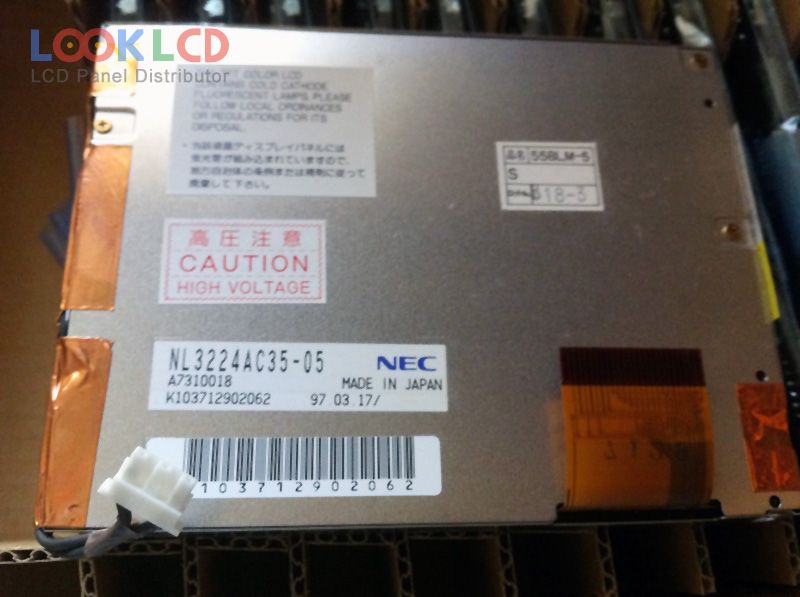

| panel model | NL3224AC35-05 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 111.36×83.52 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | Full color |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Analog RGB + Composite Video |
| Ansøgning | IA |
