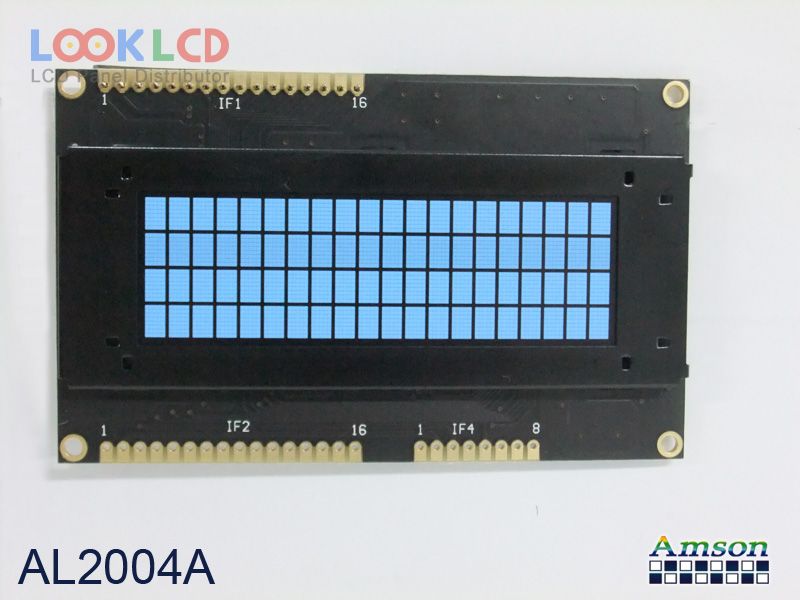

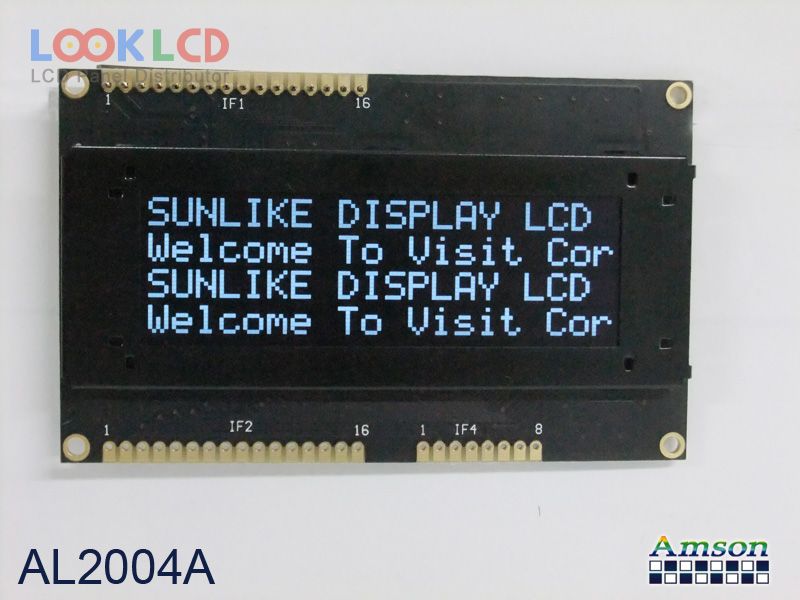

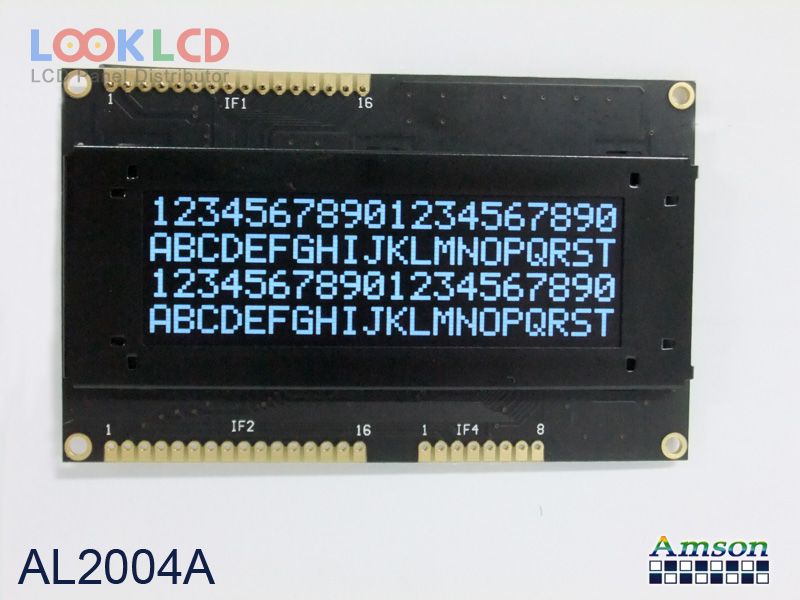

| Varenummer | AL2004A |
| Mærke | Other |
| Størrelse | 3.0 |
| Ansøgning | |
| Løsning | 20×4 |
| Sammensætning | OLED |
| Lysstyrke | |
| CR | |
| Farver | Mono(White) |
| Baggrundsbelysning | self |
| Interface | CPU |
| panel mærke | Amson |
| panel model | AL2004A |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 3.0 inch |
| visningsformat | 20 characters × 4 lines |
| vise skrifttyper | 5×7 dots + cursor |
| tegnstørrelse | 2.97×4.77 mm |
| karakter tonehøjde | 3.55×5.35 mm |
| aktivt område | 70.42×20.82 mm |
| bezel område | 72.42×22.82 mm |
| omrids | 98×60×9.7 mm |
| lysstyrke | |
| kontrastforhold | |
| vise farver | Mono(White) |
| driver ic | Built-in KS0066 |
| signal interface | 8-bit parallel, 16 pins |
| indgangsspænding | 3.3V (Typ.) |
