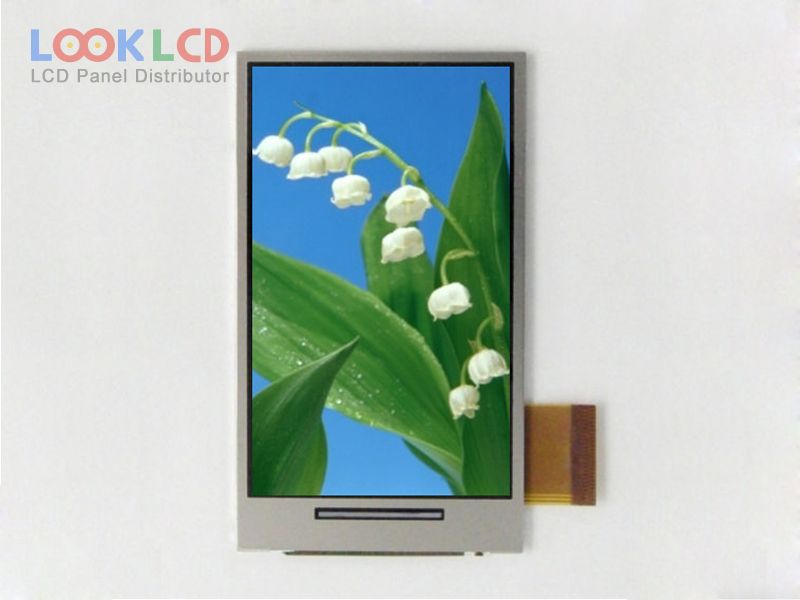

| Varenummer | 30WQF0H |
| Mærke | SII |
| Størrelse | 3.0 |
| Ansøgning | HHP |
| Løsning | 240×400 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU/RGB/SPI |
| panel mærke | SII |
| panel model | 30WQF0H |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.0 inch |
| løsning | 240(RGB)×400 , WQVGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 39.24×65.4 mm |
| omrids | 44.5×77.1×2.3 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193168% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 5S1PWLED |
| signal interface | CPU/RGB/SPI, 51 pins |
| indgangsspænding | 1.8/3.0V (Typ.)(IOVCC/VCI) |
| Ansøgning | HHP |
