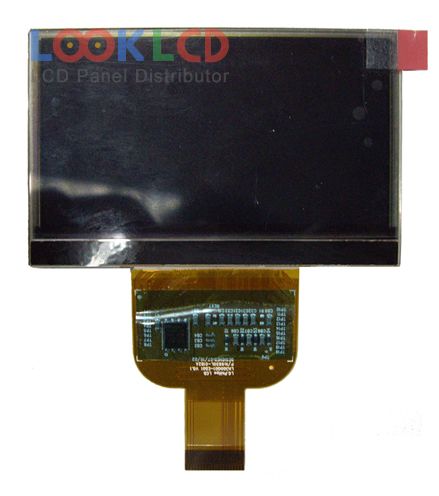

| Varenummer | LH300Q01-ED01 |
| Mærke | LG Display |
| Størrelse | 3.0 |
| Ansøgning | HHP |
| Løsning | 320×240 |
| Sammensætning | OLED |
| Lysstyrke | 200 |
| CR | 5000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | self |
| Interface | Serial RGB |
| panel mærke | LG Display |
| panel model | LH300Q01-ED01 |
| paneltype | AM-OLED , OLED |
| panelstørrelse | 3.0 inch |
| løsning | 320(RGB)×240 , QVGA |
| aktivt område | 66.24×37.2 mm |
| omrids | 72.44×48.47 mm |
| overflade | Hard coating (2H) |
| lysstyrke | 200 cd/m² (Min.) |
| kontrastforhold | 5000 : 1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193181% |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | Serial RGB (8-bit) + SPI, 39 pins |
| indgangsspænding | 1.8/3.3/3.3V (VDD/VCC/IOVCC) |
| Ansøgning | HHP |
| 990000881 | TPO | 3.0 | 960×480(dot) |
| A030JTN01.1 | AUO | 3.0 | 960×480(dot) |
| AMS300FW01-0 | Samsung | 3.0 | 240×400 |
| C-51505NFJ-SLG-AHN | Kyocera | 3.0 | 20×2 |
| C-51505NFJ-SLW-APN | Kyocera | 3.0 | 20×2 |
| DLC0300AMG | Other | 3.0 | 240×400 |
| DMC-20261NYJ-LY-CDE-CKN | Kyocera | 3.0 | 20×2 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LTM030DH60 | TOSHIBA | 3.0 | 240×427 |
| TFTMD030011 | JDI | 3.0 | 720×480 |
| 24QVF2H | SII | 2.4 | 240×320 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| COM35T3112DTR | ORTUSTECH | 3.5 | 240×320 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| DLC0700WZG | Other | 7.0 | 1200×1920 |
| LQ035Q7DB05 | SHARP | 3.5 | 240×320 |
| LQ039Q2DS51 | SHARP | 3.9 | 320×240 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| LTM035A776C | TOSHIBA | 3.5 | 240×320 |
| YX035CM31 | 3.5 | 320×240 |
