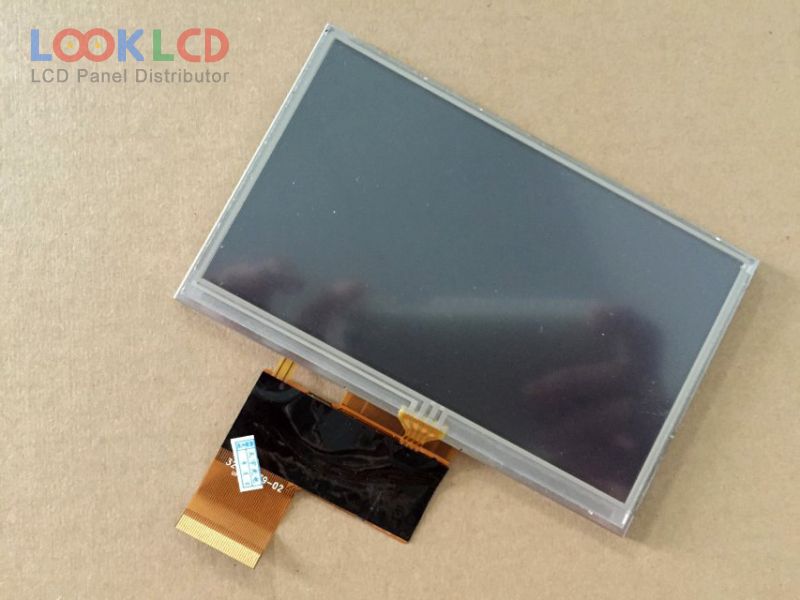

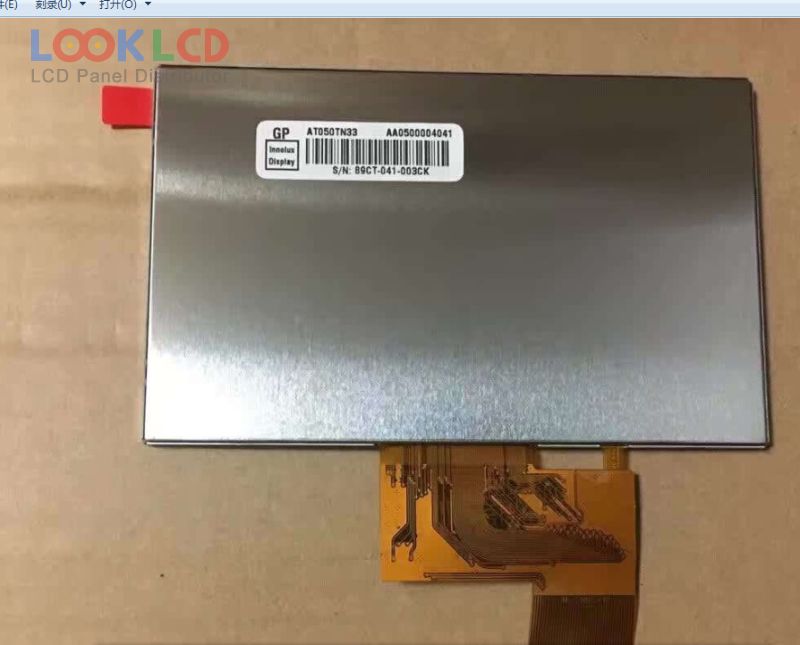

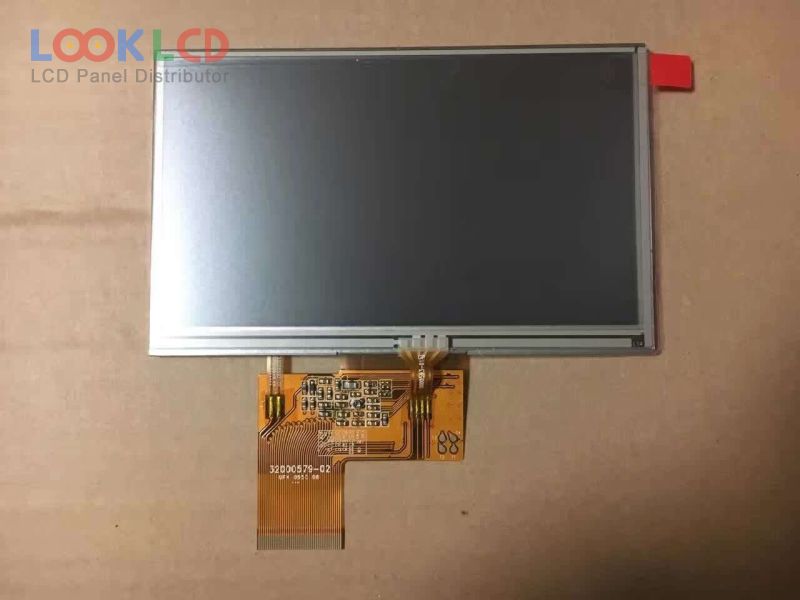

| Varenummer | AT050TN33 |
| Mærke | Innolux |
| Størrelse | 5.0 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | INNOLUX |
| panel model | AT050TN33 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 110.88×62.832 mm |
| omrids | 120.7×75.8×4.45 mm |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | PND |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| AT050TN34 | Innolux | 5.0 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| AT056TN04 V.6 | Innolux | 5.6 | 320×234 |
| AT056TN52 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.5 | Innolux | 5.6 | 640×480 |
| AT056TN53 V.1 | Innolux | 5.6 | 640×480 |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| ET043001DM6 | EDT | 4.3 | 480×272 |
| LMS500HF07 | Samsung | 5.0 | 480×272 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LR430RC9601 | Innolux | 4.3 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
