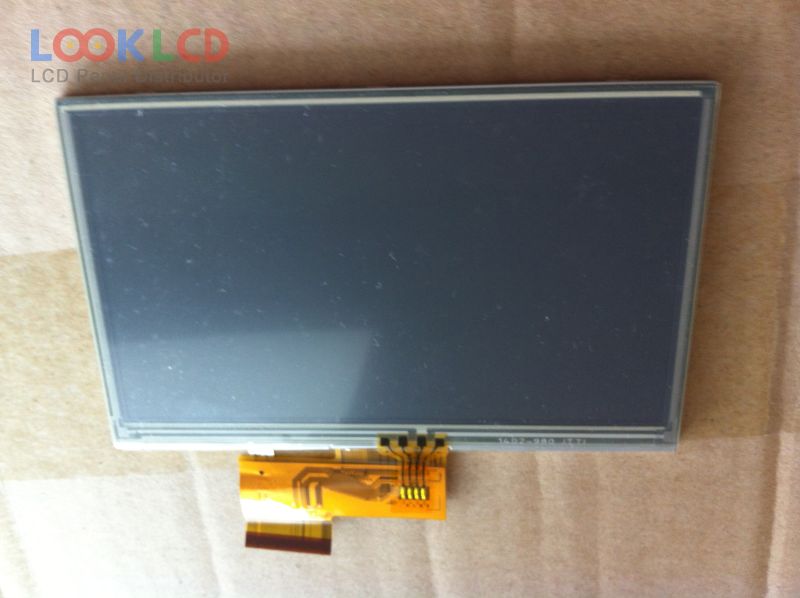

| Varenummer | A050FW02 V5 |
| Mærke | AUO |
| Størrelse | 5.0 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A050FW02 V5 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 110.88×62.832 mm |
| omrids | 120.7×75.8×4.45 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193154% |
| responstid | 7/23 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 7S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| indgangsspænding | 3.3V (Typ.)(AVDD);1.7/ (Min.)(DVDD) |
| Ansøgning | PND |
