| Varenummer | AX080D002F |
| Mærke | KOE |
| Størrelse | 31.5 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 850:1 |
| Farver | 16.7M |
| Baggrundsbelysning | EEFL |
| Interface | LVDS |
| panel mærke | IPS Alpha |

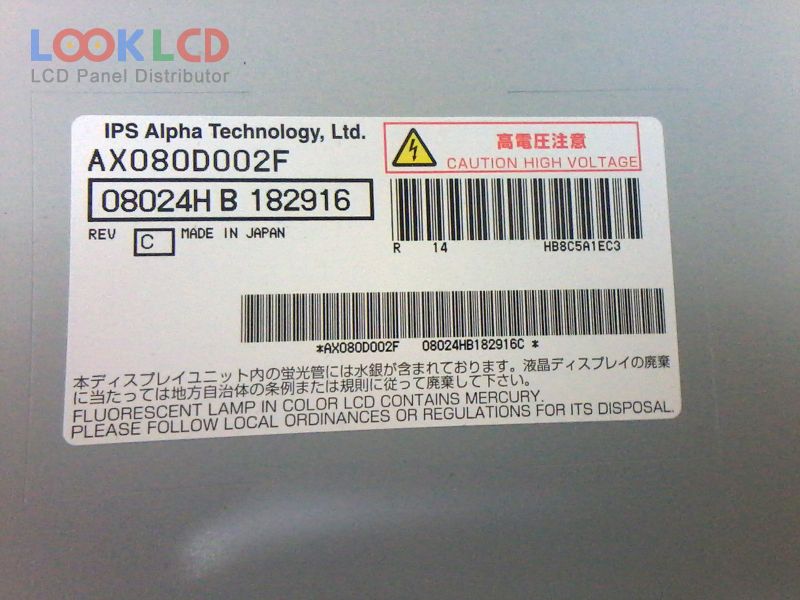

| panel model | AX080D002F |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 31.5 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | IPS-Pro, Normally Black, Transmissive |
| aktivt område | 697.685×392.256 mm |
| omrids | 760×450 mm |
| overflade | Antiglare |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 850:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 8/6 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 16 pcsEEFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
| AX080A080G | KOE | 31.5 | 1366×768 |
| AX080D002F | KOE | 31.5 | 1366×768 |
| AX080E002B | KOE | 31.5 | 1366×768 |
| LC320DXE-SFR1 | LG Display | 31.5 | 1366×768 |
| LTA320WT-L08 | Samsung | 31.5 | 1366×768 |
| LTA320WT-L16 | Samsung | 31.5 | 1366×768 |
| LTF320AP06 | Samsung | 31.5 | 1366×768 |
| T315HW02 V5 | AUO | 31.5 | 1920×1080 |
| T315HW04 V8 | AUO | 31.5 | 1920×1080 |
| T315XW03 V4 | AUO | 31.5 | 1366×768 |
| LC420WUE-SBC1 | LG Display | 42 | 1920×1080 |
| LC430DUY-SHA3 | LG Display | 43 | 1920×1080 |
| LC470WUN-SDA1 | LG Display | 47 | 1920×1080 |
| LTA320HA04 | Samsung | 31.5 | 1920×1080 |
| LTA400HM13 | Samsung | 40 | 1920×1080 |
| LTA400HM21-W | Samsung | 40 | 1920×1080 |
| LTA570HH-LH2 | Samsung | 57 | 1920×1080 |
| LTY460HB01 | Samsung | 46 | 1920×1080 |
| MT2751A01-1 | CSOT | 27.5 | 1366×768 |
| T370HW02 V5 | AUO | 37 | 1920×1080 |
