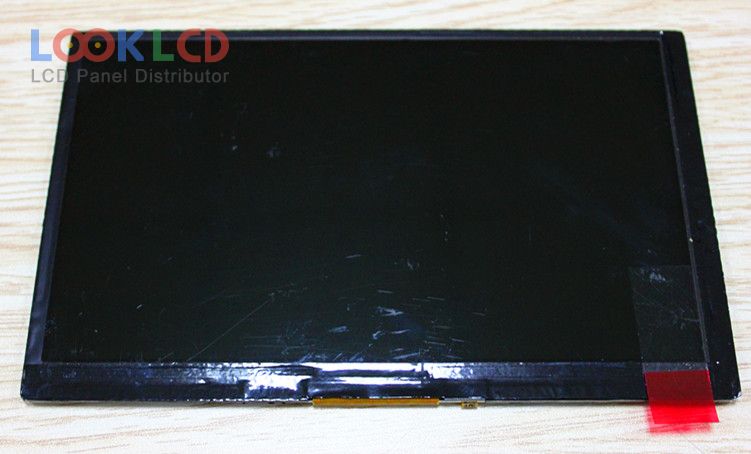

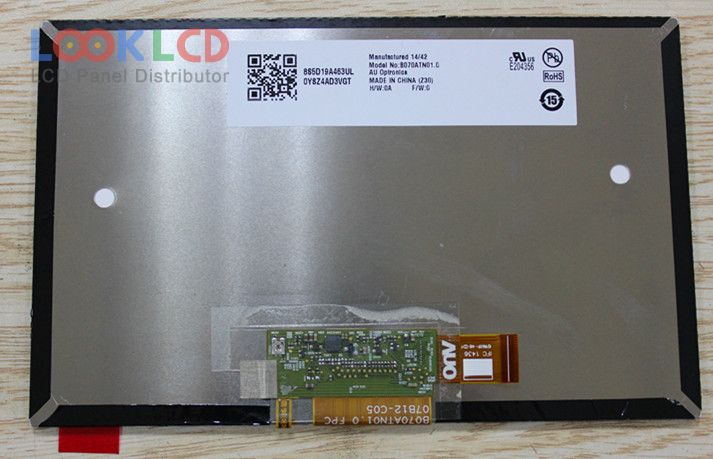

| Varenummer | B070ATN01.0 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | DPF |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 700:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B070ATN01.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 167.25×104.65×4.8 mm |
| overflade | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 39 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DPF |
