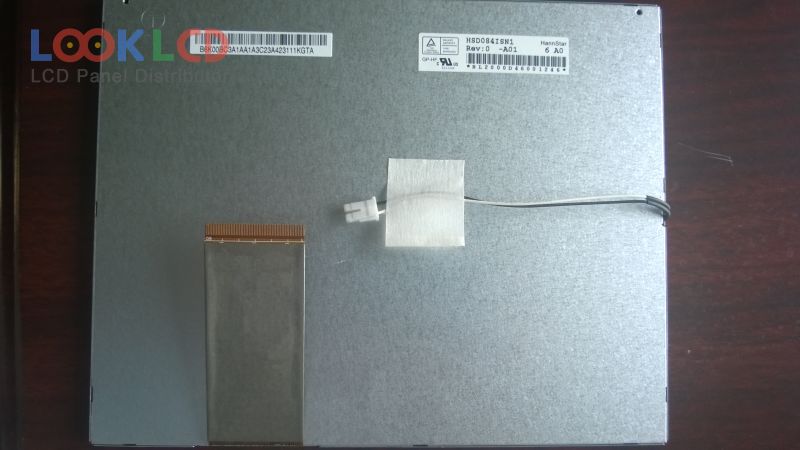

| Varenummer | HSD084ISN1-A01 |
| Mærke | HannStar |
| Størrelse | 8.4 |
| Ansøgning | DPF |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 380 |
| CR | 600:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | HannStar |
| panel model | HSD084ISN1-A01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 170.4×127.8 mm |
| omrids | 189.7×149.4×5.3 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 380 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC) |
| responstid | 2/6 (Typ.)(Tr/Td) |
| synsvinkel | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S9PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 60 pins |
| indgangsspænding | 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | DPF |
