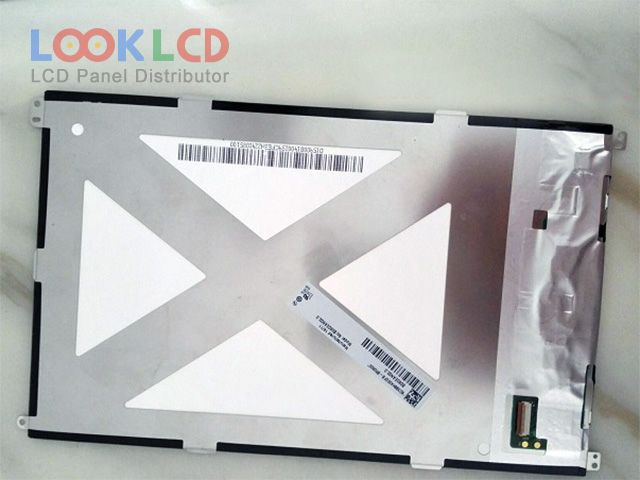

| Varenummer | B080EAN02.0 |
| Mærke | AUO |
| Størrelse | 8.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | AUO |
| panel model | B080EAN02.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | AHVA, Normally Black, Transmissive |
| aktivt område | 107.64×172.224 mm |
| omrids | 114.8×184.7×4.56 mm |
| overflade | Hard coating, Antireflection |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193158% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S3PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 31 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| A080SN01 V8 | AUO | 8.0 | 800×600 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| AV080WSM-NW0 | BOE | 8.0 | 1024×600 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| B080EAN02.0 | AUO | 8.0 | 800×1280 |
| B080EAN02.2 | AUO | 8.0 | 800×1280 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| L5F30614T23 | SANYO | 8.0 | 800×480 |
| LQ080Y5CGQ2 | SHARP | 8.0 | 800×480 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| EE090NA-01C | Innolux | 9.0 | 1280×800 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LD089WU1-SM01 | LG Display | 8.9 | 1920×1200 |
| LP101WX1-SLB1 | LG Display | 10.1 | 1280×800 |
| LP125WH2-SLB3 | LG Display | 12.5 | 1366×768 |
| LQ079L1SX01 | SHARP | 7.9 | 1536×2048 |
